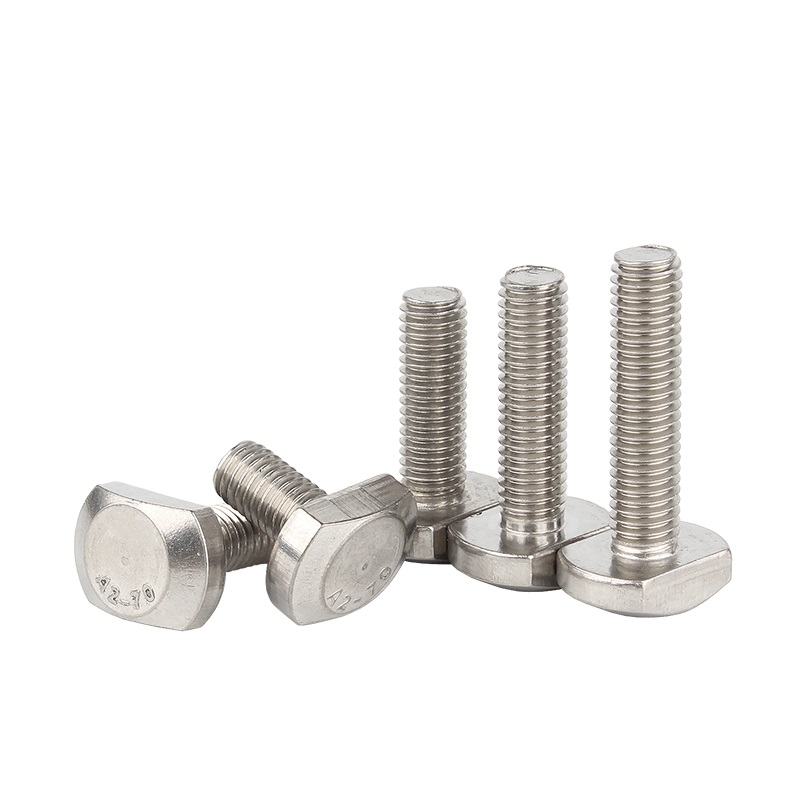

Stainless Steel A2-70 A4-80 SS201 SS304 SS316 DIN186 T Bolts Featured Image
  • Stainless Steel A2-70 A4-80 SS201 SS304 SS316 DIN186 T Bolts
  • Stainless Steel A2-70 A4-80 SS201 SS304 SS316 DIN186 T Bolts
  • Stainless Steel A2-70 A4-80 SS201 SS304 SS316 DIN186 T Bolts
  • Stainless Steel A2-70 A4-80 SS201 SS304 SS316 DIN186 T Bolts
  • Stainless Steel A2-70 A4-80 SS201 SS304 SS316 DIN186 T Bolts

Stainless Steel A2-70 A4-80 SS201 SS304 SS316 DIN186 T Bolts


  • Moq:
    test
  • Price:
    test
  • Package:
    test
  • Export port:
    test
  • Delivery date:
    test
  • Payment method:
    test
    • Download All Products List

    Product Detail

    Product Tags

    Product Photos and Information

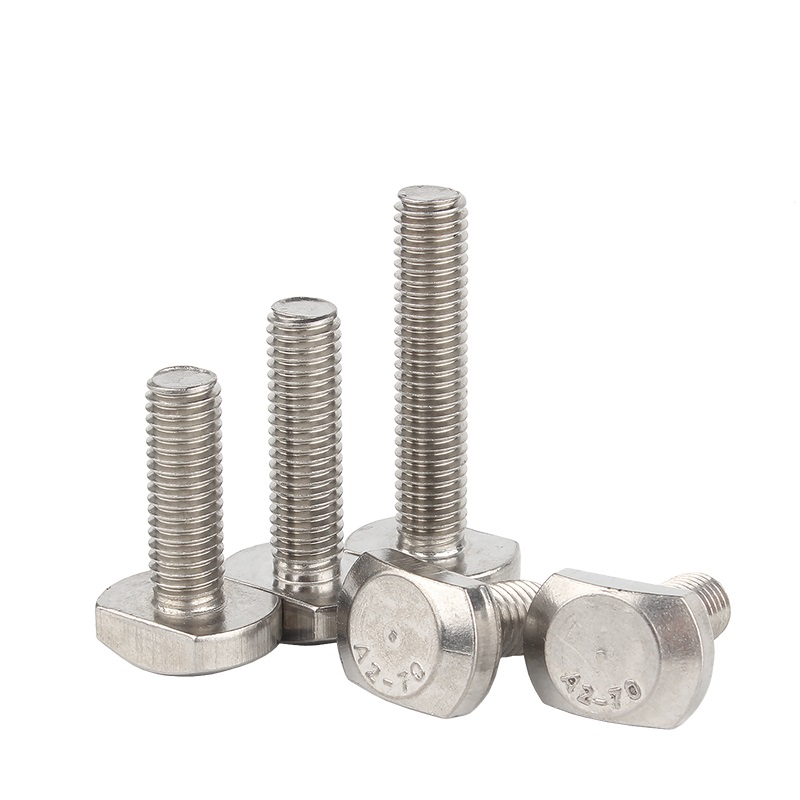

    Stainless Steel A2-70 A4-80 SS201 SS304 SS316 DIN186 T Bolts (5)
    Name T bolts
    Standards DIN ISO ANC BSW JIS etc.
    Size M3-M50
    Length 15-500
    Materials Carbon Steel/Stainless Steel
    Strength level 4.8 8.8 10.9 12.9 A2-70 A4-70 A4-80
    Surface finish ZPHDGBLACKDacromet etc.
    Samples Available

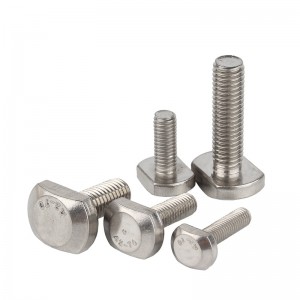

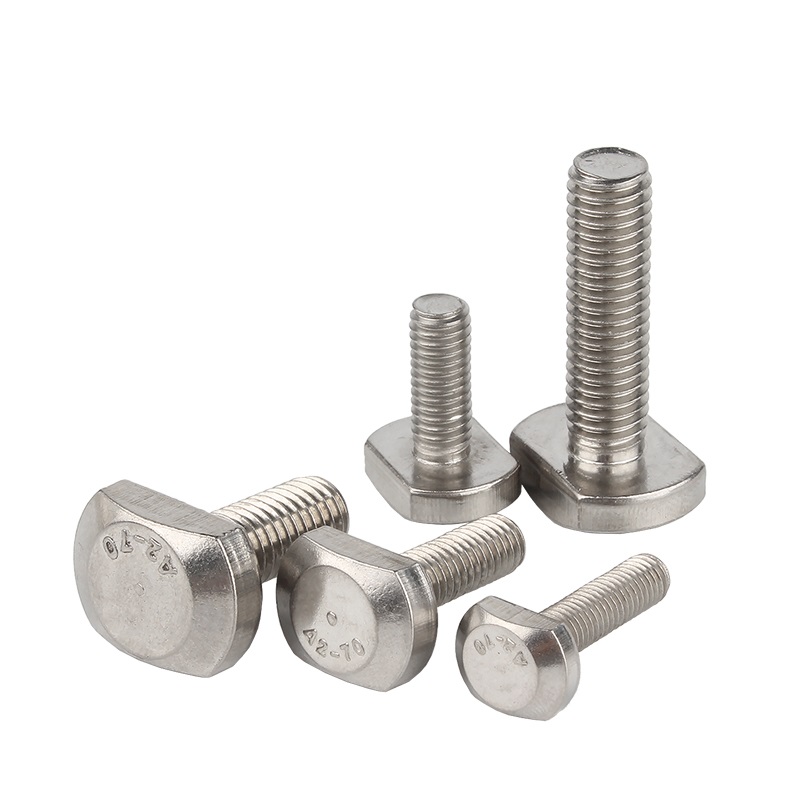

    Stainless Steel A2-70 A4-80 SS201 SS304 SS316 DIN186 T Bolts (4)

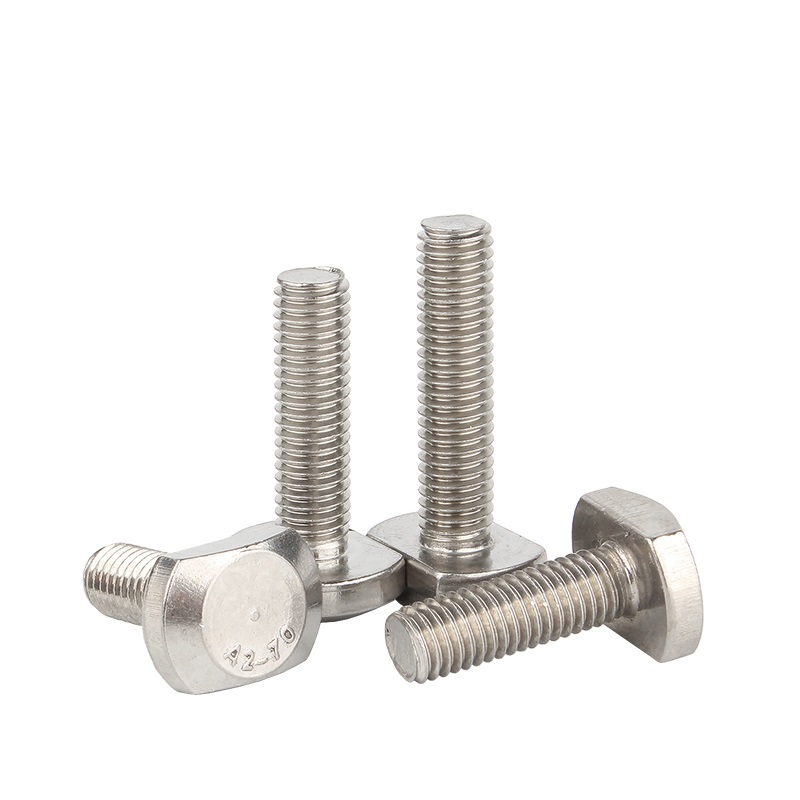

    Stainless Steel A2-70 A4-80 SS201 SS304 SS316 DIN186 T Bolts (2)

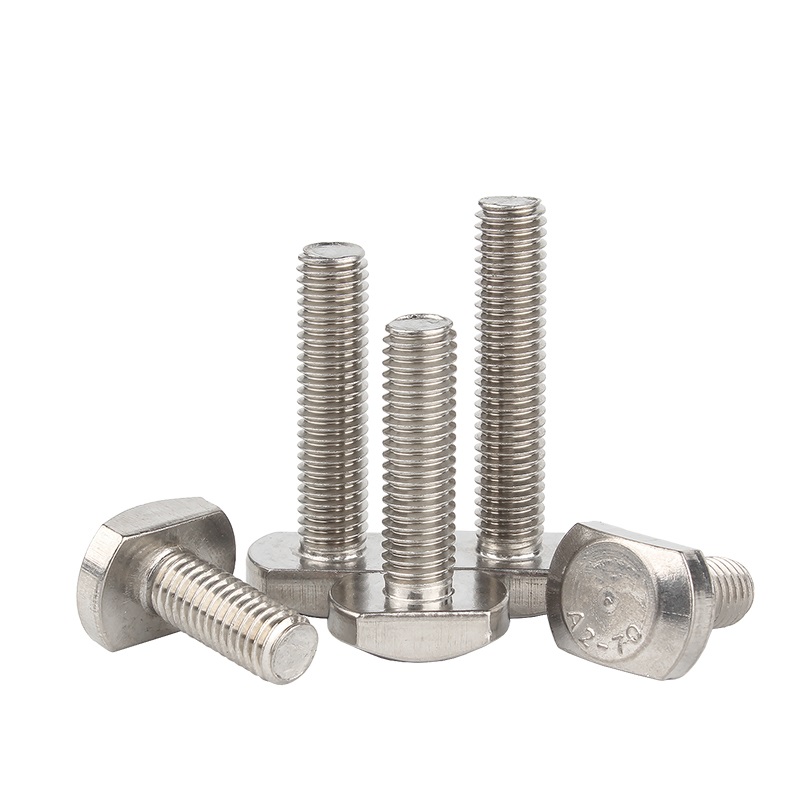

    Stainless Steel A2-70 A4-80 SS201 SS304 SS316 DIN186 T Bolts (1)
    Stainless Steel A2-70 A4-80 SS201 SS304 SS316 DIN186 T Bolts (8)

    Product Standards

    detail11

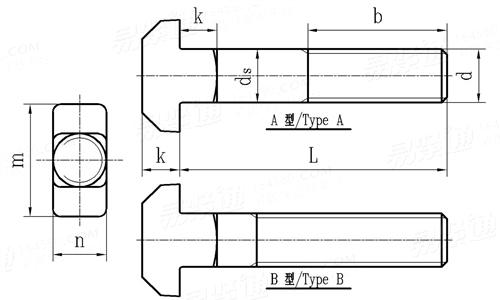

    T-shaped square neck bolts DIN 186
    Thread specification M6 M8 M10 M12 M16 M20 M24 M30 M36 M42 M48
    d
    P pitch 1 1.25 1.5 1.75 2 2.5 3 3.5 4 4.5 5
    b L≤120 (Type A) 18 twenty two 26 30 38 46 54 66 78 / /
    120＜L≤200 (Type A) / / / / 44 52 60 72 84 96 108
    Type B* L-10 L-13 L-16 L-19 L-25 L-31 L-37 L-43 L-55 L-54 L-72
    ds Nominal 6 8 10 12 16 20 twenty four 30 36 42 48
    maximum value 6.48 8.58 10.58 12.7 16.7 20.84 24.84 30.84 37 43 49
    minimum 5.52 7.42 9.42 11.3 15.3 19.16 23.16 29.16 35 41 47
    k Nominal 4.5 5.5 7 8 10.5 13 15 19 twenty three 26 30
    maximum value 4.9 5.9 7.5 8.75 11.4 13.9 15.9 20 twenty four 27 31
    minimum 4.1 5.1 6.5 7.25 9.6 12.1 14.1 18 twenty two 25 29
    n Nominal 6 8 10 12 16 20 twenty four 30 36 42 48
    maximum value 6.6 8.75 10.75 12.9 16.9 twenty one 25 31 37.25 43.25 49.25
    minimum 5.4 7.25 9.25 11.1 15.1 19 twenty three 29 34.75 40.75 46.75
    m Nominal 16 18 twenty one 26 30 36 43 54 66 80 88
    maximum value 16.9 18.9 twenty two 27 31 37.25 44.25 55.5 67.5 81.5 89.75
    minimum 15.1 17.1 20 25 29 34.75 41.75 52.5 64.5 78.5 86.25
    Thousand pieces of steel weight ≈kg - - - - - - - - - - -

    About Us

    Dabang Fasteners is a wholly-owned subsidiary of Hebei Chengyi Engineering Materials Co., Ltd.
    Our parent company has 21 years experience in fastener production and is ISO9001 ISO14001 ISO45001 SGS certified.
    We focus on providing customers with competitive products that meet user needs.
    --- Factory price, saving 15-30% of the middleman price difference.
    --- exporting to 154 countries, accumulatively serving 1800+ customers, rich export experience
    --- 5000 tons in stock, up to 3000 tons per month, average delivery time 7-20 days.
    --- After-sales team of 25 people, solve all after-sales problems

    0 Risk Commitment
    --- If the product quality and packaging problems are found after receiving the goods,
    help solve the problem and unconditionally compensate the loss within 30 days.

    Our added value
    --- In China, provide you with free factory inspection services.

    about_us2

    Factory Introduction

    factory1

    Production Process

    process21

    Packing and Shipping

    Packing1

    Certificate

    certificate1

    Exhibition/partner Photos

    Exhibition
