Product Detail

Product Tags

Product Photos and Information

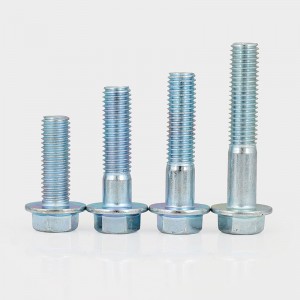

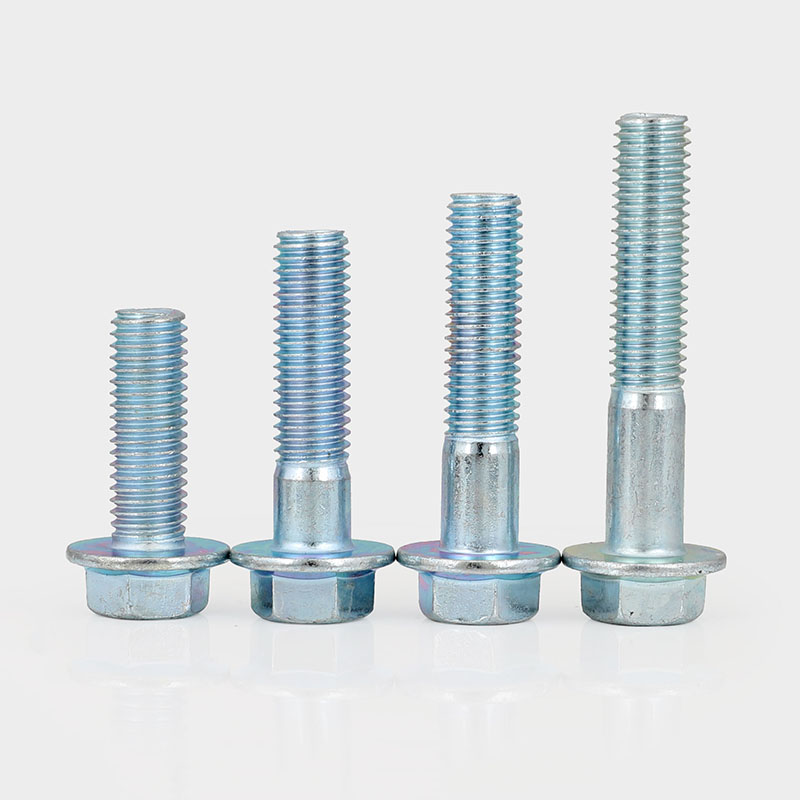

High Strength Grade 4.8 8.8 10.9 12.9 Zinc Plated DIN6921 Flange Bolts (2)

Name	Hex Flange Bolts
Standards	DIN ISO ANC BSW JIS etc.
Size	M3-M50
Length	15-500
Materials	Carbon Steel/Stainless Steel
Strength level	4.8 8.8 10.9 12.9 A2-70 A4-70 A4-80
Surface finish	ZPHDGBLACKDacromet etc.
Samples	Available

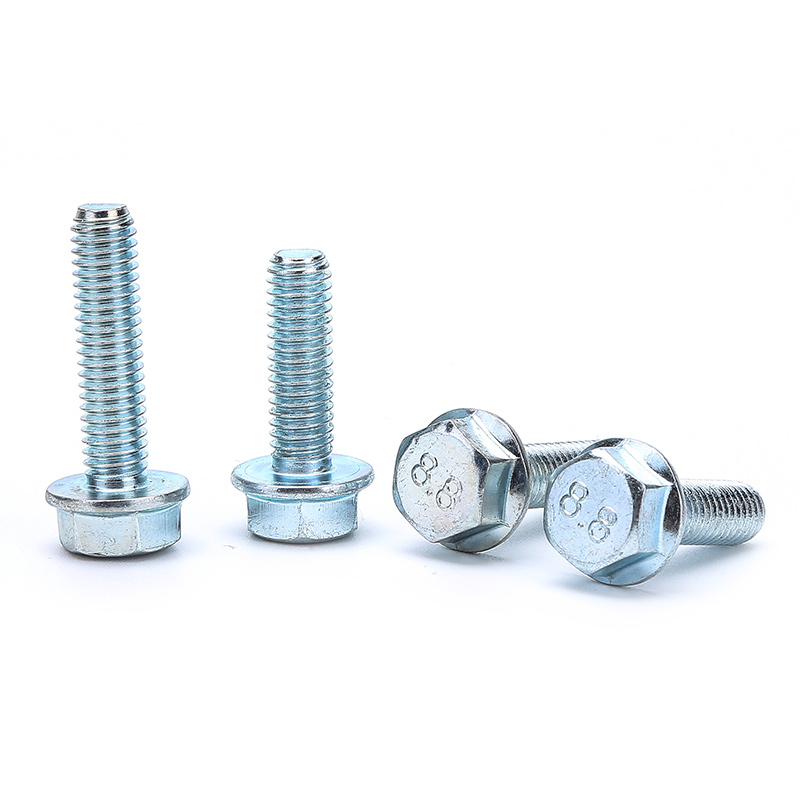

High Strength Grade 4.8 8.8 10.9 12.9 Zinc Plated DIN6921 Flange Bolts (8)

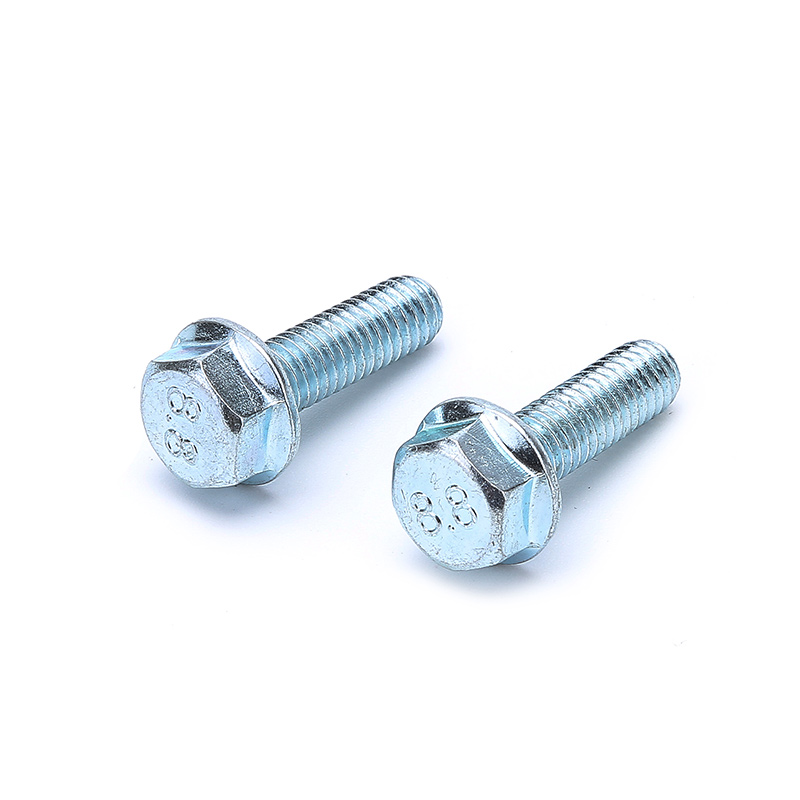

High Strength Grade 4.8 8.8 10.9 12.9 Zinc Plated DIN6921 Flange Bolts (6)

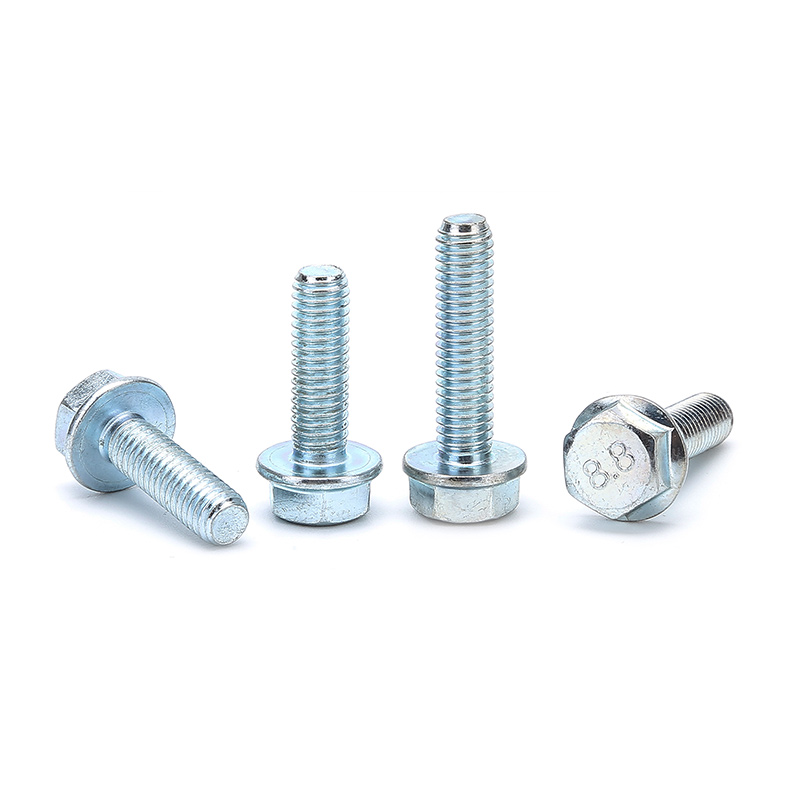

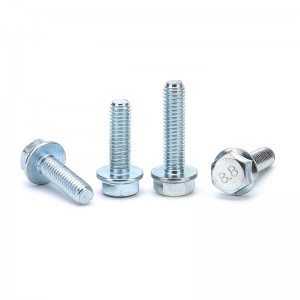

High Strength Grade 4.8 8.8 10.9 12.9 Zinc Plated DIN6921 Flange Bolts (7)

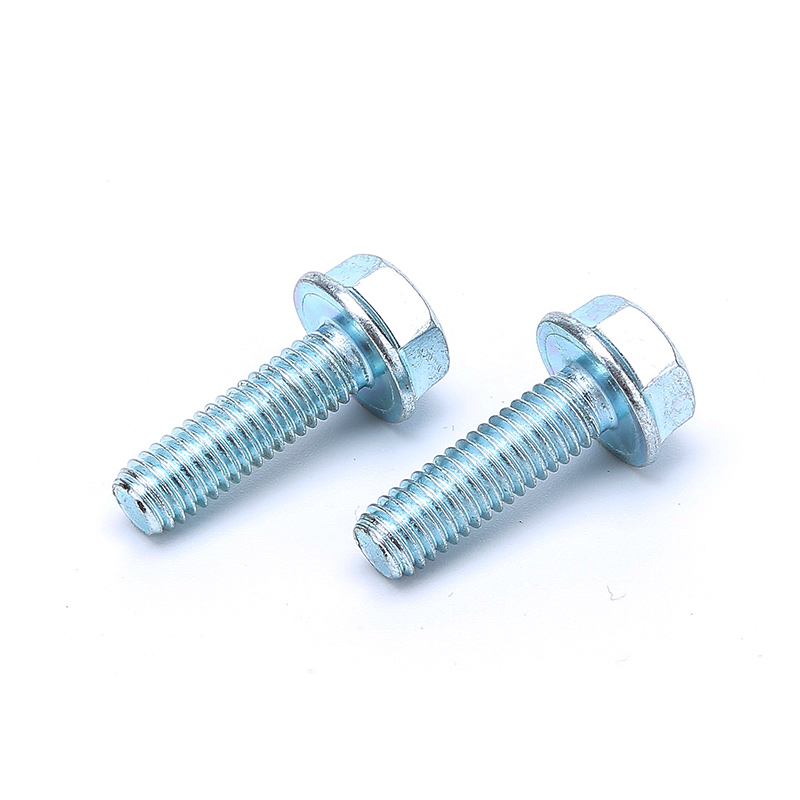

High Strength Grade 4.8 8.8 10.9 12.9 Zinc Plated DIN6921 Flange Bolts (1)

Product Standards

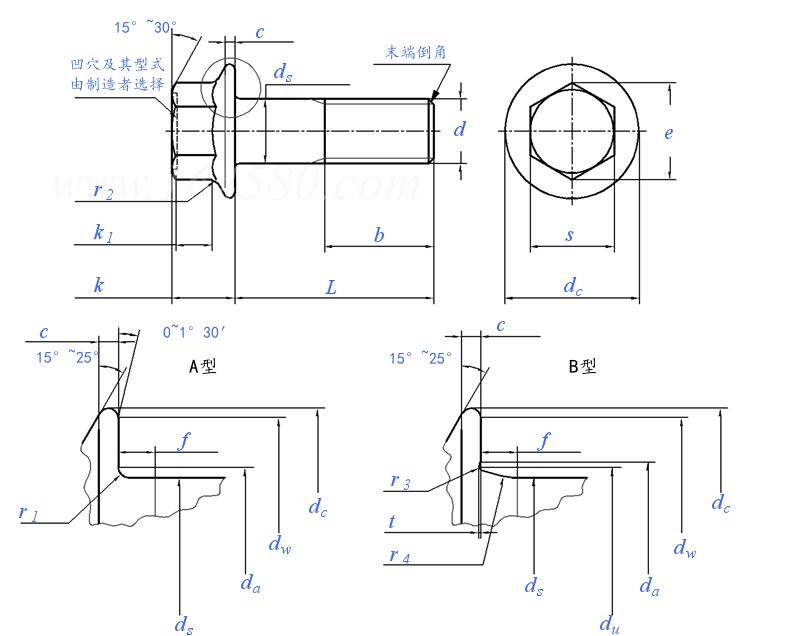

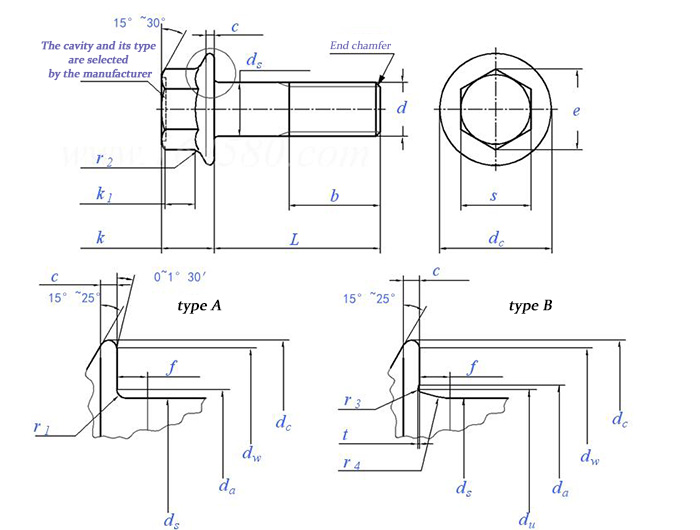

Hexagon head flange bolts DIN 6921
Thread specification			M5	M6	M8	M10	M12	M14	M16	M20
d			M5	M6	M8	M10	M12	M14	M16	M20
P	pitch	coarse teeth	0.8	1	1.25	1.5	1.75	2	2	2.5
		fine teeth 1	/	/	1	1.25	1.5	1.5	1.5	1.5
		fine teeth 2	/	/	/	1	1.25	/	/	/
b	L≤125		16	18	twenty two	26	30	34	38	46
	125＜L≤200		/	/	28	32	36	40	44	52
	L＞200		/	/	/	/	/	/	57	65
c	minimum		1	1.1	1.2	1.5	1.8	2.1	2.4	3
d a	Type A	maximum value	5.7	6.8	9.2	11.2	13.7	15.7	17.7	22.4
d a	Type B	maximum value	6.2	7.4	10	12.6	15.2	17.7	20.7	25.7
dc	maximum value		11.8	14.2	18	22.3	26.6	30.5	35	43
ds	maximum value		5	6	8	10	12	14	16	20
ds	minimum		4.82	5.82	7.78	9.78	11.73	13.73	15.73	19.67
of u	maximum value		5.5	6.6	9	11	13.5	15.5	17.5	twenty two
dw	minimum		9.8	12.2	15.8	19.6	23.8	27.6	31.9	39.9
and	minimum		8.71	10.95	14.26	16.5	17.62	19.86	23.15	29.87
f	maximum value		1.4	2	2	2	3	3	3	4
k	maximum value		5.4	6.6	8.1	9.2	11.5	12.8	14.4	17.1
k 1	minimum		2	2.5	3.2	3.6	4.6	5.1	5.8	6.8
r 1	minimum		0.25	0.4	0.4	0.4	0.6	0.6	0.6	0.8
r 2	maximum value		0.3	0.4	0.5	0.6	0.7	0.9	1	1.2
r 3	minimum		0.1	0.1	0.15	0.2	0.25	0.3	0.35	0.4
r 4	≈		3	3.4	4.3	4.3	6.4	6.4	6.4	8.5
s	max = nominal		8	10	13	15	16	18	twenty one	27
s	minimum		7.78	9.78	12.73	14.73	15.73	17.73	20.67	26.67
t	maximum value		0.15	0.2	0.25	0.3	0.35	0.45	0.5	0.65
t	minimum		0.05	0.05	0.1	0.15	0.15	0.2	0.25	0.3
thread length b			-	-	-	-	-	-	-	-
