High Strength Grade 4.8 8.8 10.9 12.9 Dacromet DIN6921 Flange Bolts


  • Moq:
    test
  • Price:
    test
  • Package:
    test
  • Export port:
    test
  • Delivery date:
    test
  • Payment method:
    test
  • Product Detail

    Product Tags

    Product Photos and Information

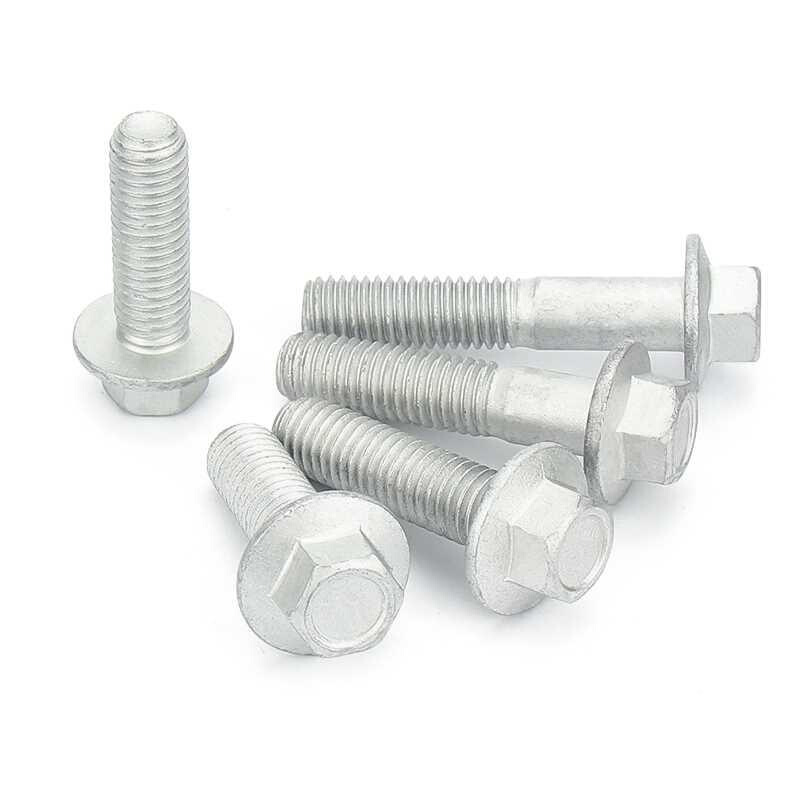

    High Strength Grade 4.8 8.8 10.9 12.9 Dacromet DIN6921 Flange Bolts (6)
    Name Hex Flange Bolts
    Standards DIN ISO ANC BSW JIS etc.
    Size M3-M50
    Length 15-500
    Materials Carbon Steel/Stainless Steel
    Strength level 4.8 8.8 10.9 12.9 A2-70 A4-70 A4-80
    Surface finish ZPHDGBLACKDacromet etc.
    Samples Available

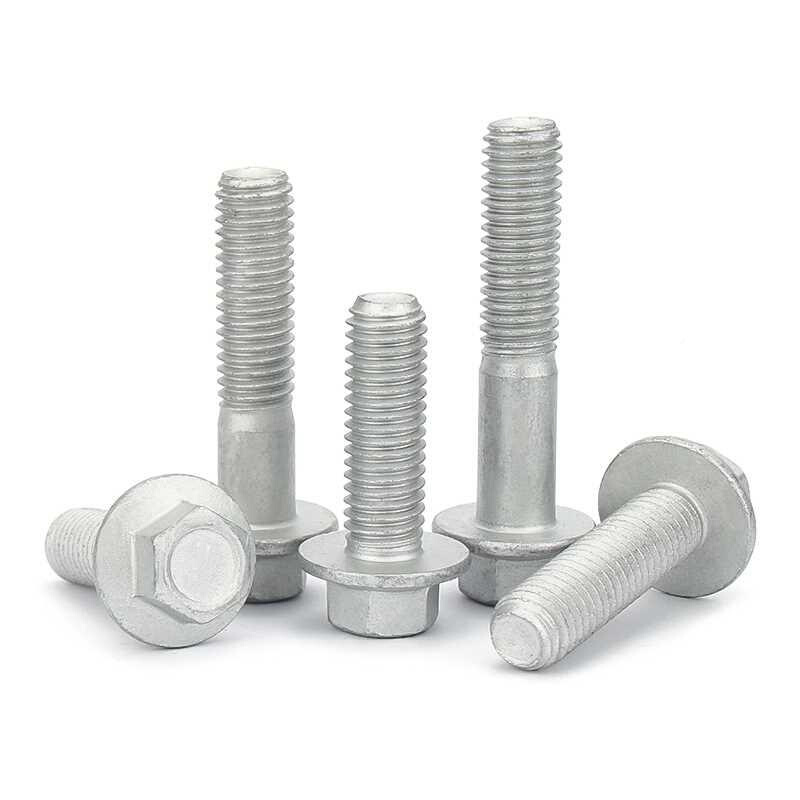

    High Strength Grade 4.8 8.8 10.9 12.9 Dacromet DIN6921 Flange Bolts (5)

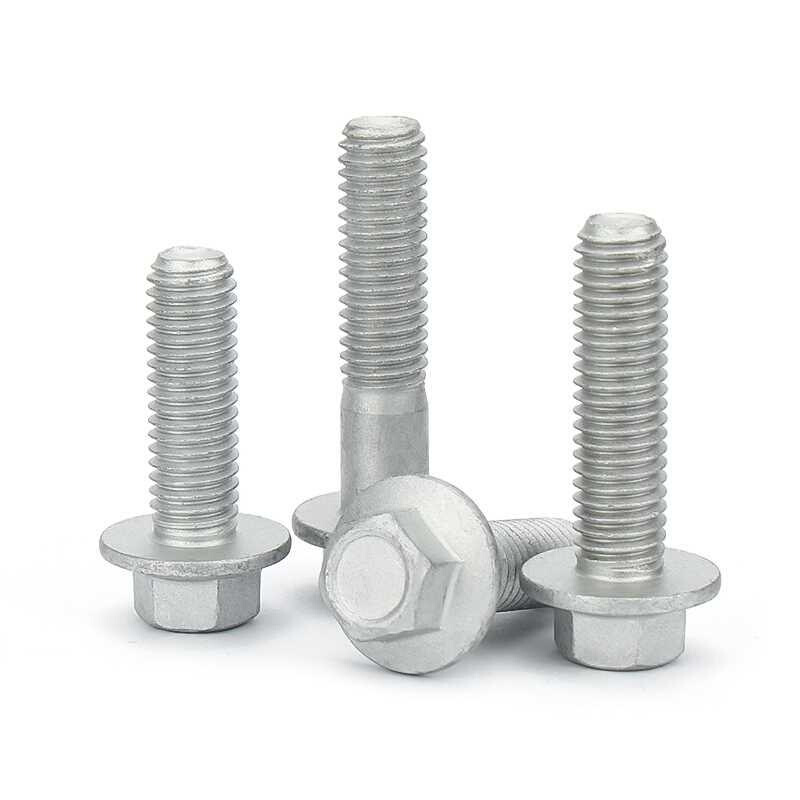

    High Strength Grade 4.8 8.8 10.9 12.9 Dacromet DIN6921 Flange Bolts (4)

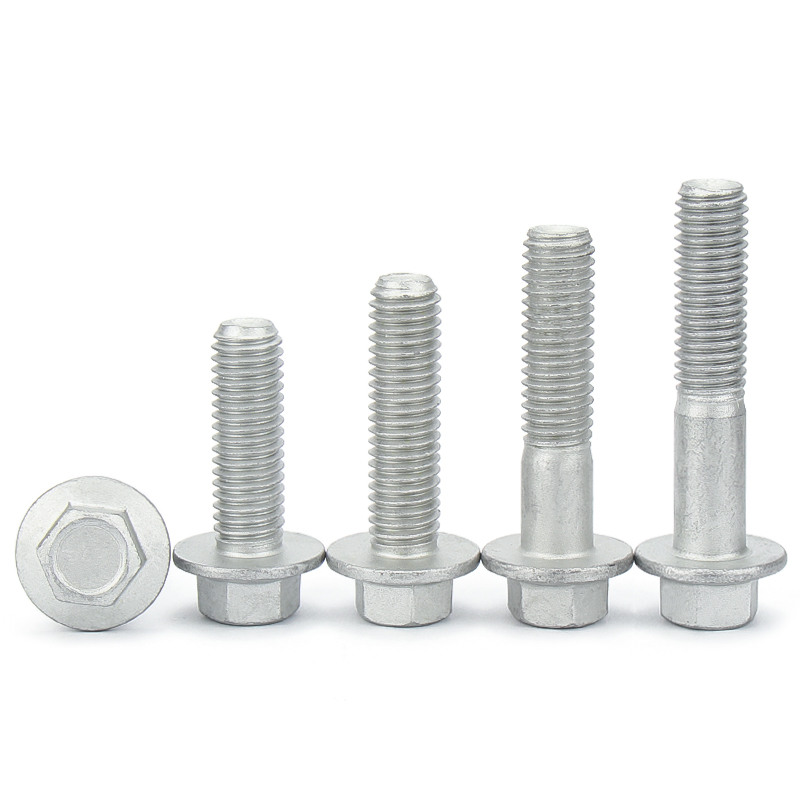

    High Strength Grade 4.8 8.8 10.9 12.9 Dacromet DIN6921 Flange Bolts (3)

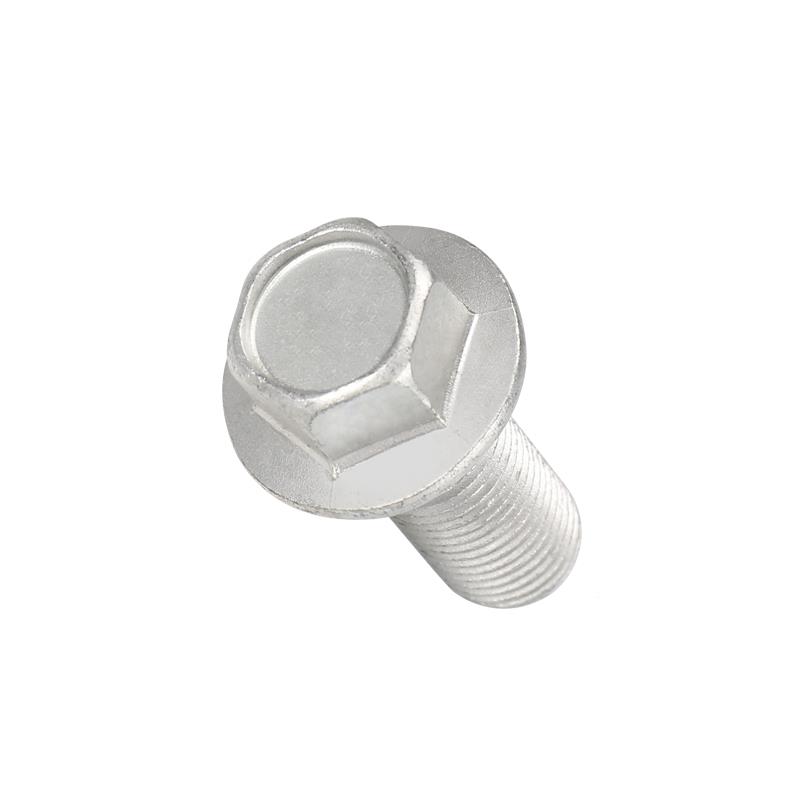

    High Strength Grade 4.8 8.8 10.9 12.9 Dacromet DIN6921 Flange Bolts (1)

    Product Standards

    detail3
    Hexagon head flange bolts DIN 6921
    Thread specification M5 M6 M8 M10 M12 M14 M16 M20
    d
    P pitch coarse teeth 0.8 1 1.25 1.5 1.75 2 2 2.5
    fine teeth 1 / / 1 1.25 1.5 1.5 1.5 1.5
    fine teeth 2 / / / 1 1.25 / / /
    b L≤125 16 18 twenty two 26 30 34 38 46
    125<L≤200 / / 28 32 36 40 44 52
    L>200 / / / / / / 57 65
    c minimum 1 1.1 1.2 1.5 1.8 2.1 2.4 3
    d a Type A maximum value 5.7 6.8 9.2 11.2 13.7 15.7 17.7 22.4
    Type B maximum value 6.2 7.4 10 12.6 15.2 17.7 20.7 25.7
    dc maximum value 11.8 14.2 18 22.3 26.6 30.5 35 43
    ds maximum value 5 6 8 10 12 14 16 20
    minimum 4.82 5.82 7.78 9.78 11.73 13.73 15.73 19.67
    of u maximum value 5.5 6.6 9 11 13.5 15.5 17.5 twenty two
    dw minimum 9.8 12.2 15.8 19.6 23.8 27.6 31.9 39.9
    and minimum 8.71 10.95 14.26 16.5 17.62 19.86 23.15 29.87
    f maximum value 1.4 2 2 2 3 3 3 4
    k maximum value 5.4 6.6 8.1 9.2 11.5 12.8 14.4 17.1
    k 1 minimum 2 2.5 3.2 3.6 4.6 5.1 5.8 6.8
    r 1 minimum 0.25 0.4 0.4 0.4 0.6 0.6 0.6 0.8
    r 2 maximum value 0.3 0.4 0.5 0.6 0.7 0.9 1 1.2
    r 3 minimum 0.1 0.1 0.15 0.2 0.25 0.3 0.35 0.4
    r 4 3 3.4 4.3 4.3 6.4 6.4 6.4 8.5
    s max = nominal 8 10 13 15 16 18 twenty one 27
    minimum 7.78 9.78 12.73 14.73 15.73 17.73 20.67 26.67
    t maximum value 0.15 0.2 0.25 0.3 0.35 0.45 0.5 0.65
    minimum 0.05 0.05 0.1 0.15 0.15 0.2 0.25 0.3
    thread length b - - - - - - - -
