High Strength Grade 4 8 10 12 Steel Black Oxide DIN982 DIN985 Nylon Lock Nuts Nylock Nuts


  • Moq:
    test
  • Price:
    test
  • Package:
    test
  • Export port:
    test
  • Delivery date:
    test
  • Payment method:
    test
  • Product Detail

    Product Tags

    Product Photos and Information

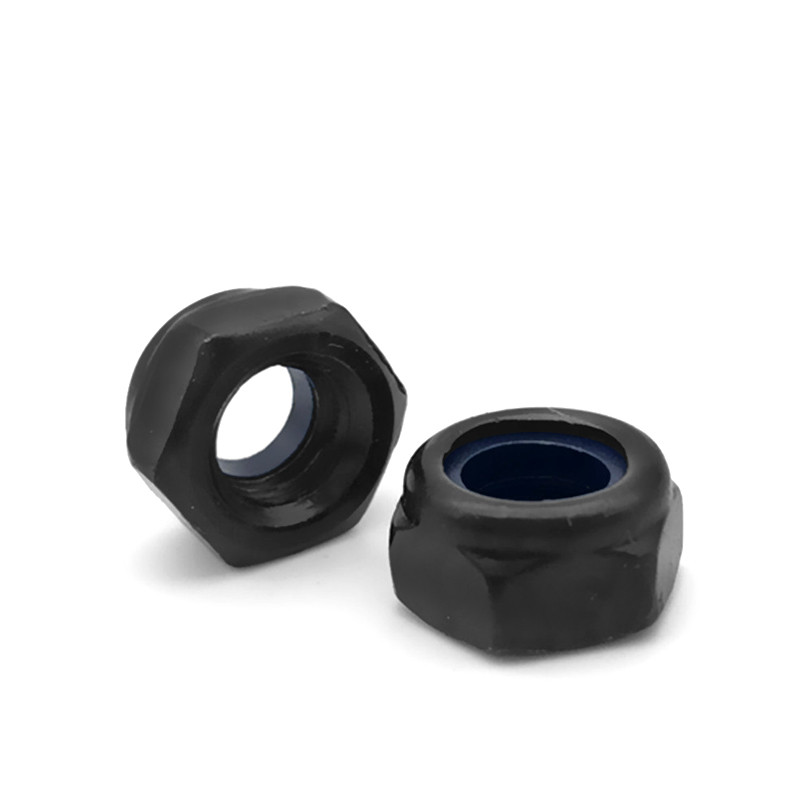

    High Strength Grade 4 8 10 12 Steel Black Oxide DIN982 DIN985 Nylo (1)
    Name Nylock Nuts
    Standards DIN ISO ANC BSW JIS etc.
    Size M3-M50
    Length 1-32
    Materials Carbon Steel/Stainless Steel
    Strength level 4 5 8 10 12 A2-70 A4-70 A4-80 etc.
    Surface finish ZPHDGBLACKDacromet etc.
    Samples Available

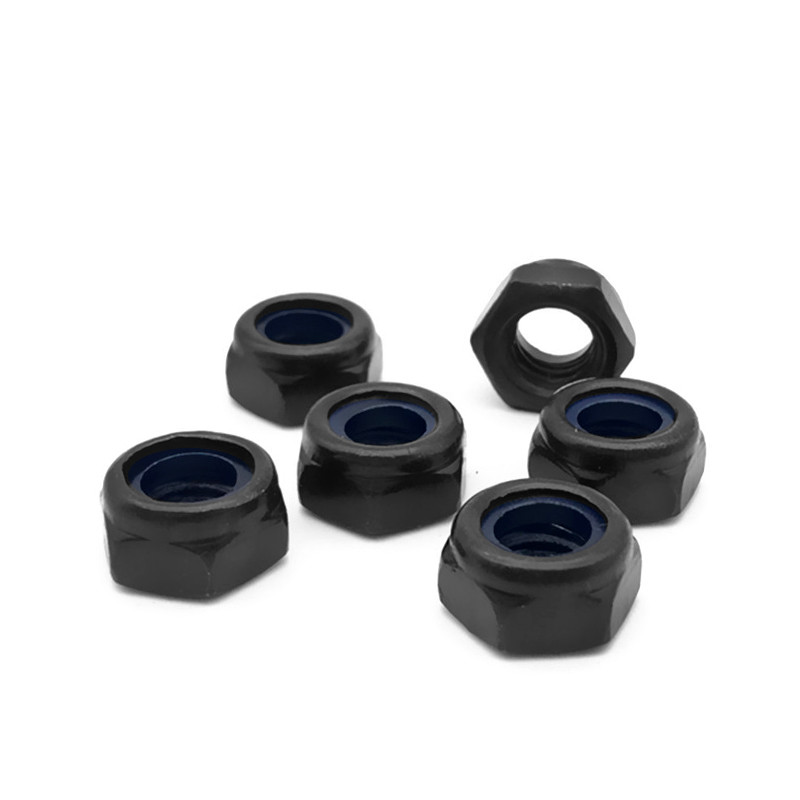

    High Strength Grade 4 8 10 12 Steel Black Oxide DIN982 DIN985 Nylo ( (14)

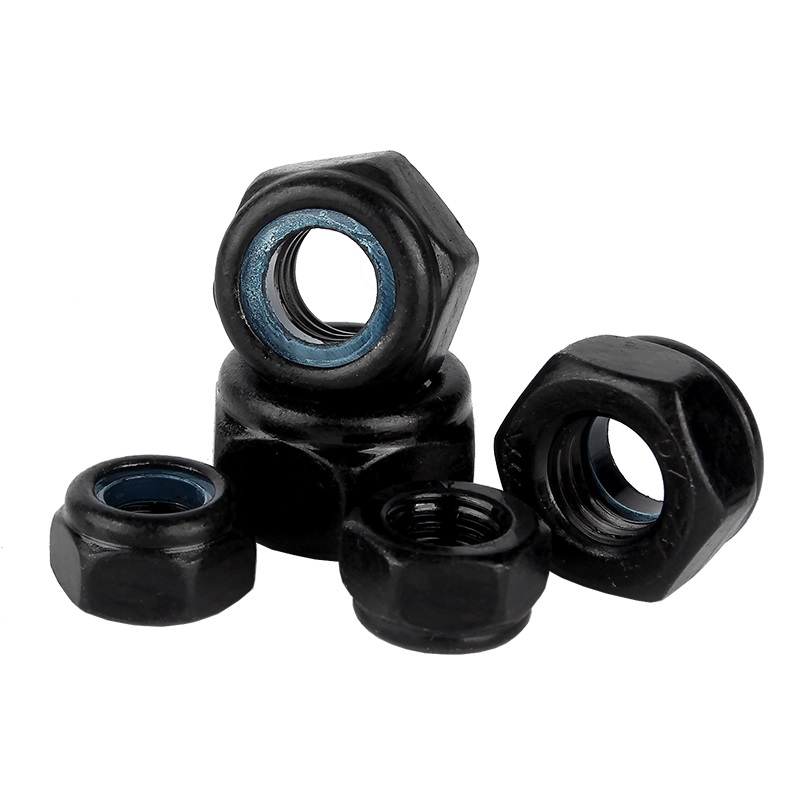

    High Strength Grade 4 8 10 12 Steel Black Oxide DIN982 DIN985 Nylo ( (11)
    High Strength Grade 4 8 10 12 Steel Black Oxide DIN982 DIN985 Nylo ( (12)

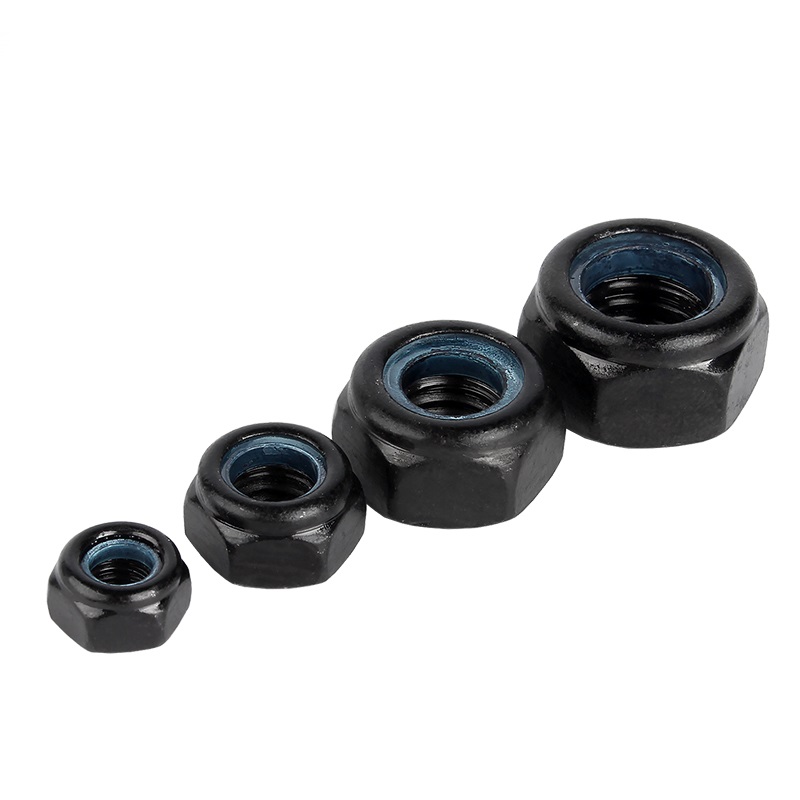

    High Strength Grade 4 8 10 12 Steel Black Oxide DIN982 DIN985 Nylo ( (8)

    Product Standards

    detail16
    Nylock Nuts Non-metallic insert lock nuts DIN 982
    Thread specification M6 M7 M8 M10 M12 M14 M16 M18 M20 M22 M24
    d
    P pitch coarse teeth 1 1 1.25 1.5 1.75 2 2 2.5 2.5 2.5 3
    fine teeth / / 1 1 1.5 1.5 1.5 2 2 2 2
    fine teeth / / / 1.25 1.25 / / 1.5 1.5 1.5 /
    d a minimum 6 7 8 10 12 14 16 18 20 twenty two twenty four
    maximum value 6.75 7.75 8.75 10.8 13 15.1 17.3 19.5 21.6 23.7 25.9
    dw minimum 8.9 9.6 11.6 15.6 17.4 20.5 22.5 24.9 27.7 29.5 33.2
    and minimum 11.05 12.12 14.38 18.9 21.1 24.49 26.75 29.56 32.95 35.03 39.55
    h max = nominal 8 8.5 9.5 11.5 14 16 18 20 twenty two 25 28
    minimum 7.7 8.2 9.14 11.14 13.64 15.3 17.3 19.16 20.7 23.7 26.7
    m minimum 4.9 6.14 6.44 8.04 10.37 12.1 14.1 15.1 16.9 18.1 20.2
    mw minimum 3.92 4.91 5.15 6.43 8.3 9.68 11.28 12.08 13.52 14.48 16.16
    s max = nominal 10 11 13 17 19 twenty two twenty four 27 30 32 36
    minimum 9.78 10.73 12.73 16.73 18.67 21.67 23.67 26.16 29.16 31 35
    Thousand pieces (steel)≈kg 3.1 3.2 6 11.7 16.6 twenty one 37.8 51.6 68 86 127
    detail17
    Nylock Nuts Low profile lock nuts with non-metallic inserts DIN 985
    thread size M3 M4 M5 M6 M7 M8 M10 M12 M14 M16 M18
    d
    P pitch coarse teeth 0.5 0.7 0.8 1 1 1.25 1.5 1.75 2 2 2.5
    fine teeth 1 / / / / / 1 1 1.5 1.5 1.5 2
    fine teeth 2 / / / / / / 1.25 1.25 / / 1.5
    d a minimum 3 4 5 6 7 8 10 12 14 16 18
    maximum value 3.45 4.6 5.75 6.75 7.75 8.75 10.8 13 15.1 17.3 19.5
    dw minimum 4.6 5.9 6.9 8.9 9.6 11.6 15.6 17.4 20.5 22.5 24.9
    and minimum 6.01 7.66 8.79 11.05 12.12 14.38 18.9 21.1 24.49 26.75 29.56
    h max = nominal 4 5 5 6 7.5 8 10 12 14 16 18.5
    minimum 3.7 4.7 4.7 5.7 7.14 7.64 9.64 11.57 13.3 15.3 17.66
    m minimum 2.4 2.9 3.2 4 4.7 5.5 6.5 8 9.5 10.5 13
    mw minimum 1.65 2.2 2.75 3.3 3.85 4.4 5.5 6.6 7.7 8.8 9.9
    s max = nominal 5.5 7 8 10 11 13 17 19 twenty two twenty four 27
    minimum 5.32 6.78 7.78 9.78 10.73 12.73 16.73 18.67 21.67 23.67 26.16
    1000 pieces weight kg 0.5 1 1.4 2.4 3 5.1 10.6 17.2 26 34 45
    thread size M20 M22 M24 M27 M30 M33 M36 M39 M42 M45 M48
    d
    P pitch coarse teeth 2.5 2.5 3 3 3.5 3.5 4 4 4.5 4.5 5
    fine teeth 1 2 2 2 2 2 2 3 3 3 3 3
    fine teeth 2 1.5 1.5 / / / / / / / / /
    d a minimum 20 twenty two twenty four 27 30 33 36 39 42 45 48
    maximum value 21.6 23.7 25.9 29.1 32.4 35.6 38.9 42.1 45.4 48.6 51.8
    dw minimum 27.7 29.5 33.2 38 42.7 46.6 51.1 55.9 60.6 64.7 69.4
    and minimum 32.95 35.03 39.55 45.2 50.85 55.37 60.79 66.44 72.09 76.95 82.6
    h max = nominal 20 twenty two twenty four 27 30 33 36 39 42 45 48
    minimum 18.7 20.7 22.7 25.7 28.7 31.4 34.4 37.4 40.4 43.4 46.4
    m minimum 14 15 15 17 19 twenty two 25 27 29 32 36
    mw minimum 11 12.2 13.2 14.8 16.5 18.2 19.8 21.5 23.1 24.8 26.5
    s max = nominal 30 32 36 41 46 50 55 60 65 70 75
    minimum 29.16 31 35 40 45 49 53.8 58.8 63.8 68.1 73.1
    1000 pieces weight kg 65 75 100 162 212 317 415 499 628 771 998
