High Strength Grade 4 8 10 12 Steel Galvanized Blue White Zinc Plated DIN6926 DIN1663 Nylon Lock Nuts With Flange Flange Nylock Nuts


  • Moq:
    test
  • Price:
    test
  • Package:
    test
  • Export port:
    test
  • Delivery date:
    test
  • Payment method:
    test
  • Product Detail

    Product Tags

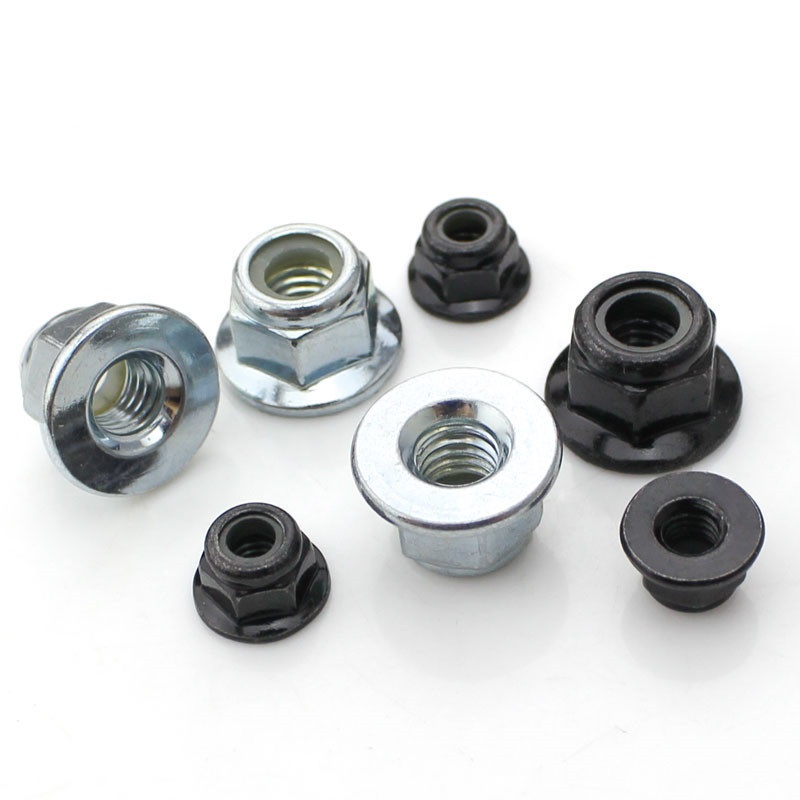

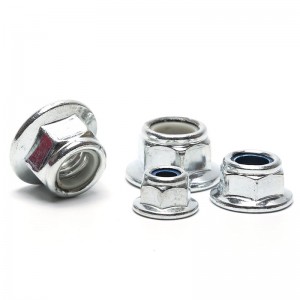

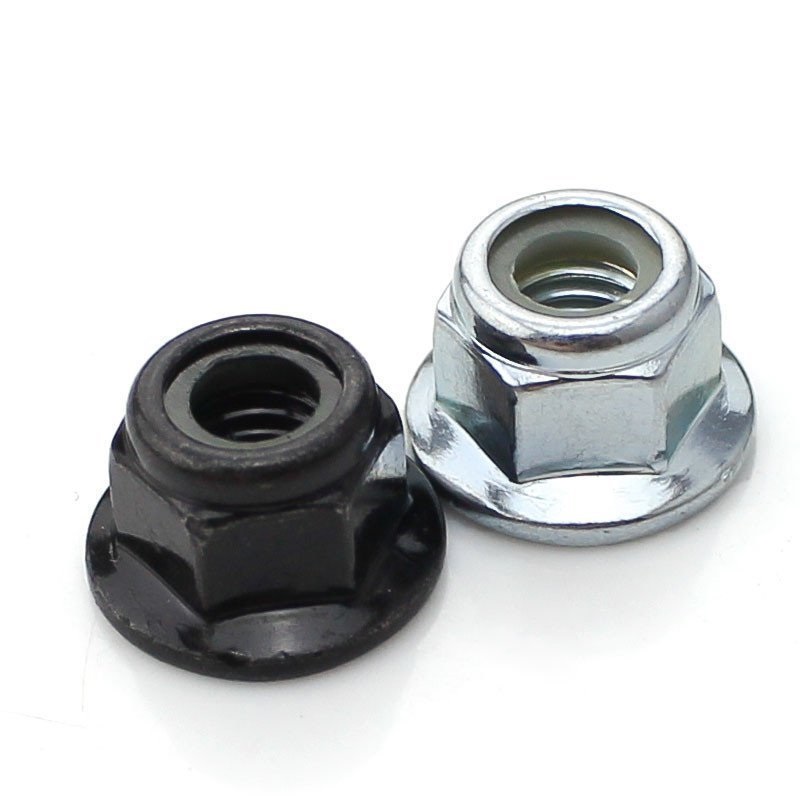

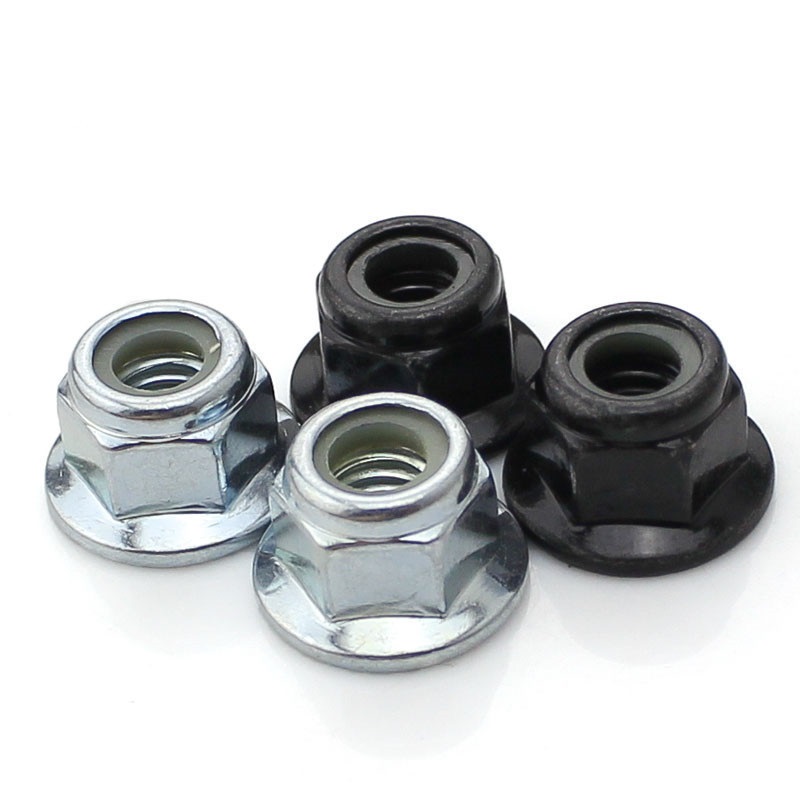

    Product Photos and Information

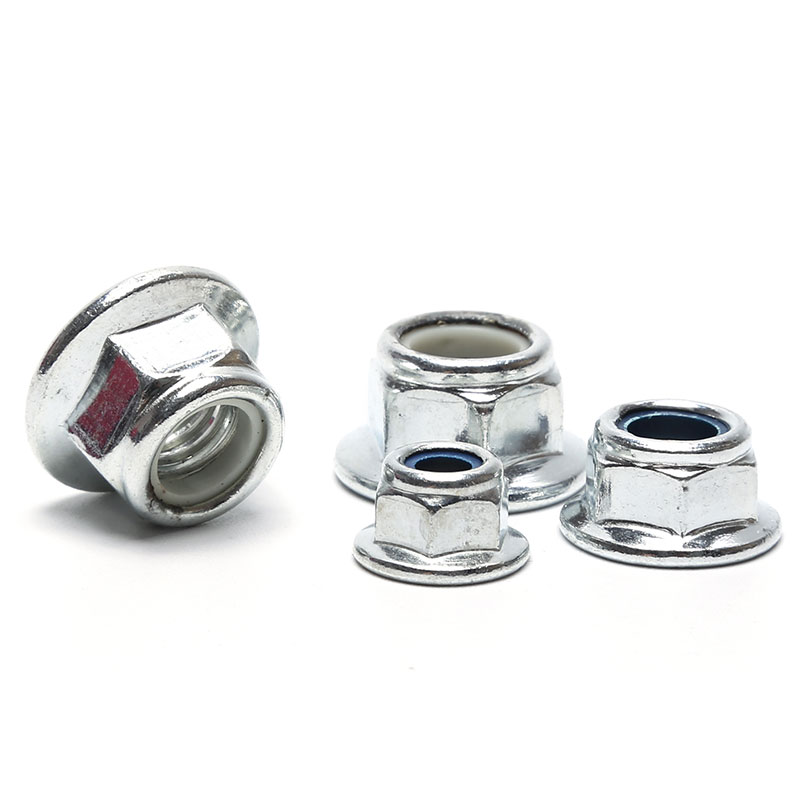

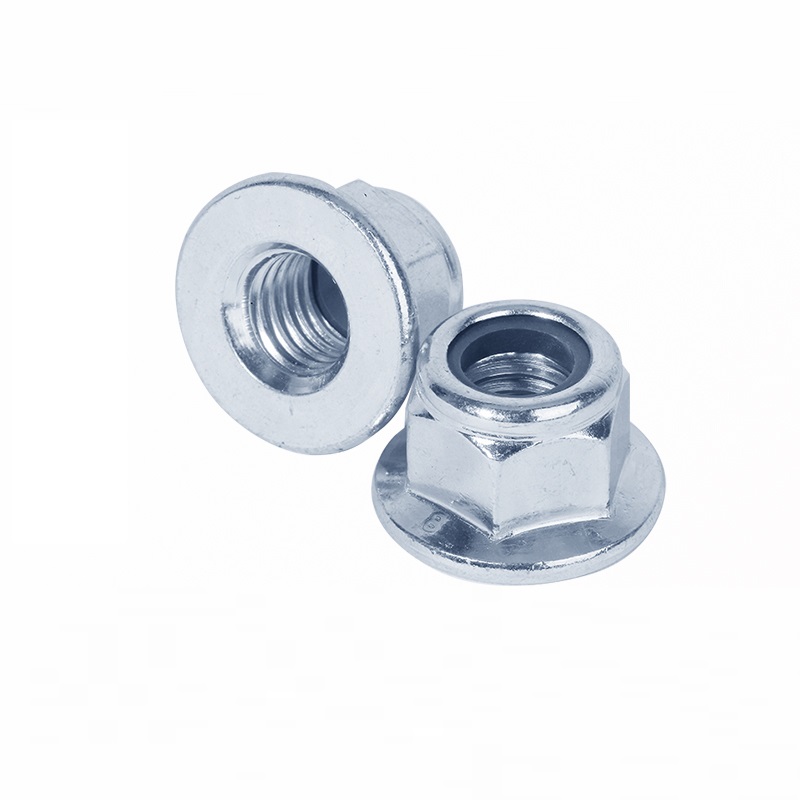

    HI4904~1

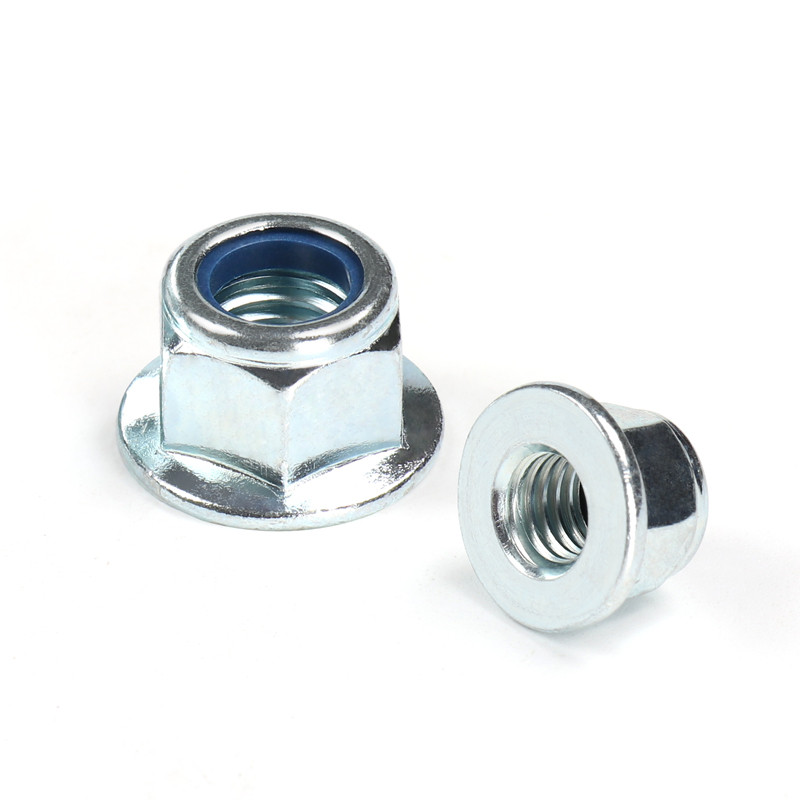

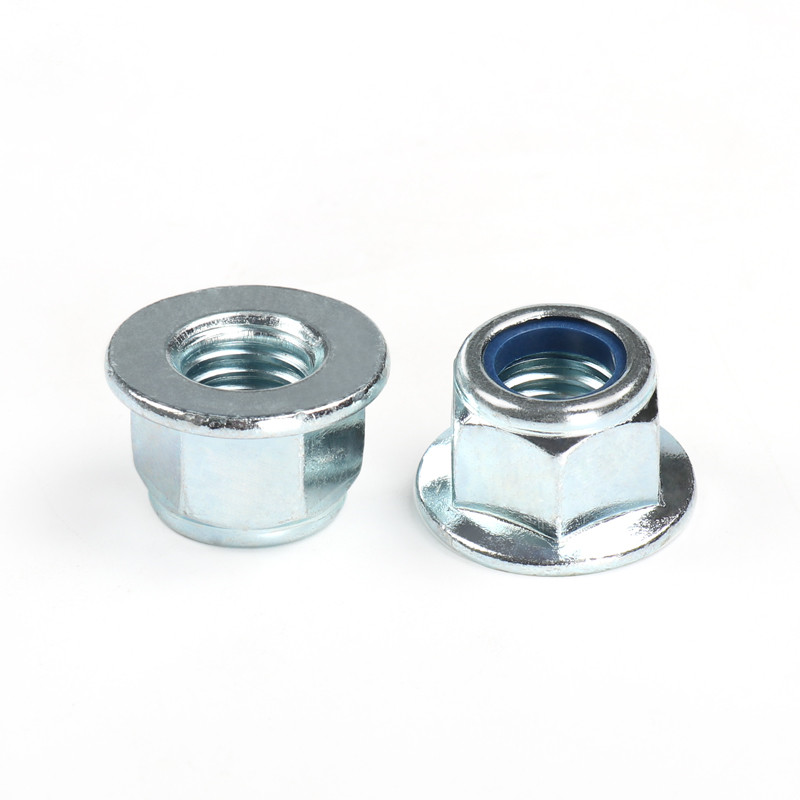

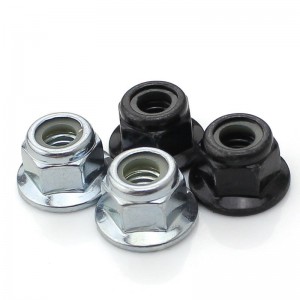

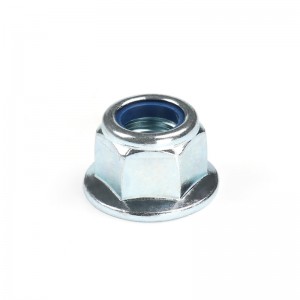

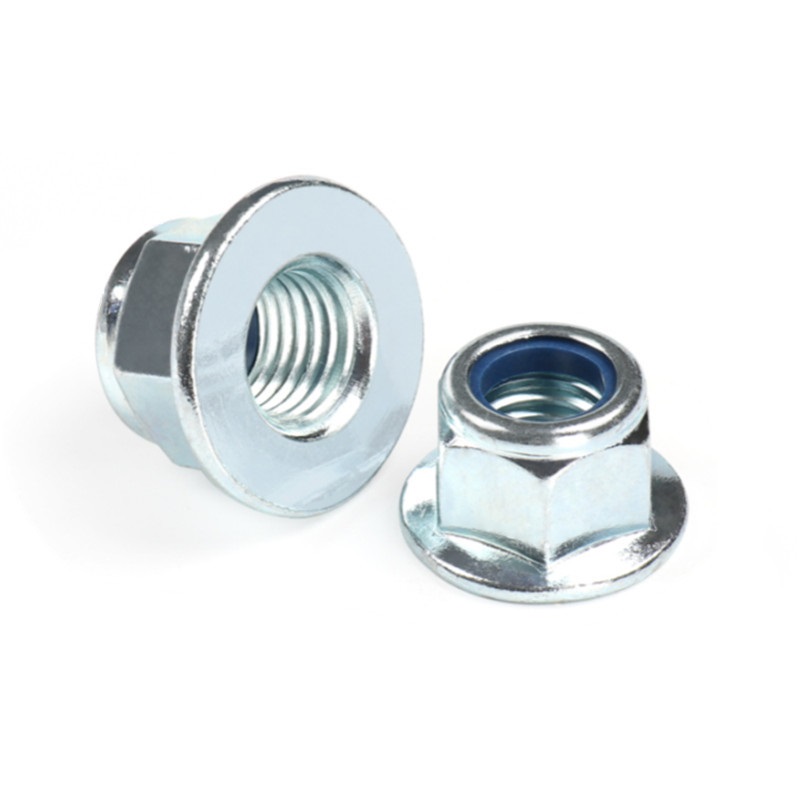

    Name Nylock Nut With Flange
    Standards DIN ISO ANC BSW JIS etc.
    Size M3-M50
    Length 5-32
    Materials Carbon Steel/Stainless Steel
    Strength level 4 5 8 10 12 A2-70 A4-70 A4-80 etc.

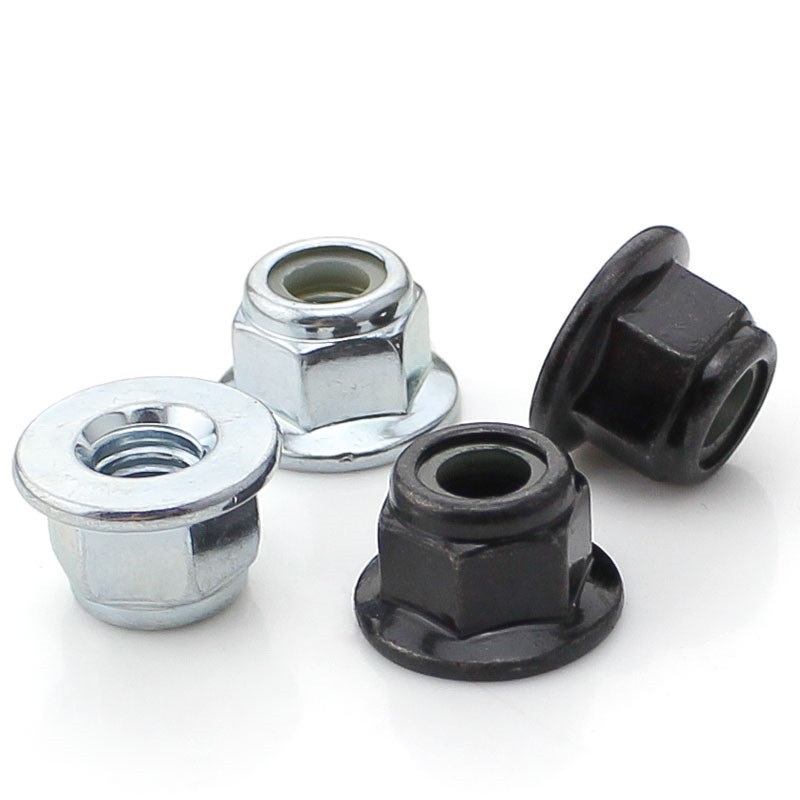

    Surface finish ZPHDGBLACKDacromet etc.
    Samples Available

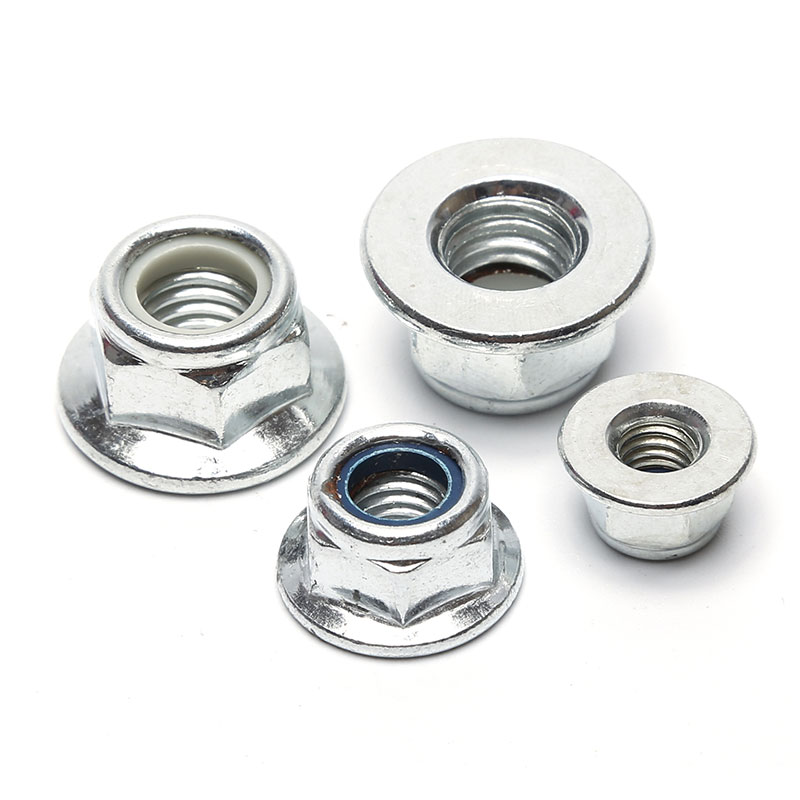

    HI627B~1

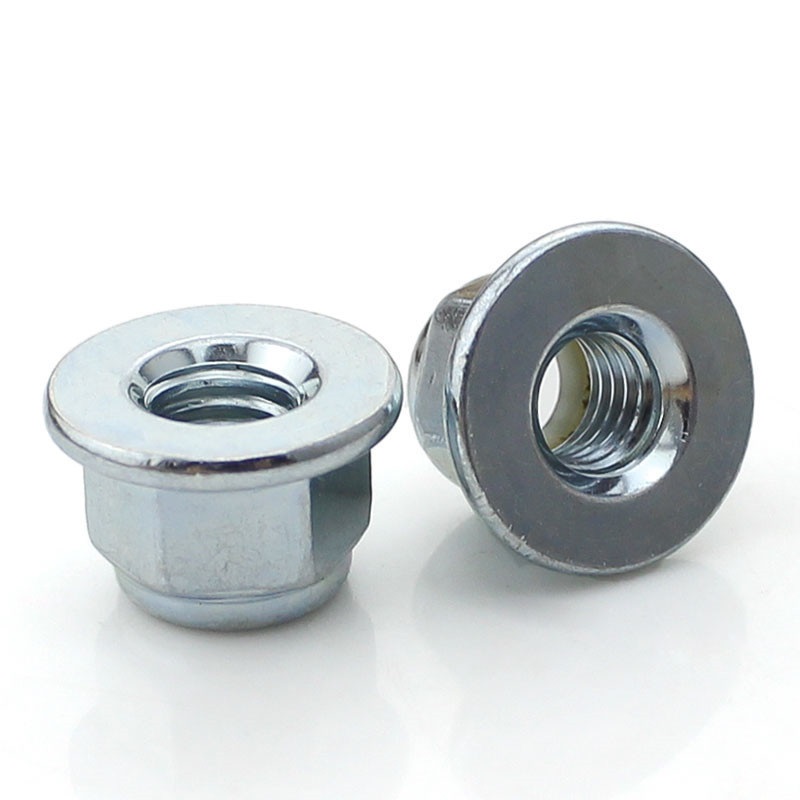

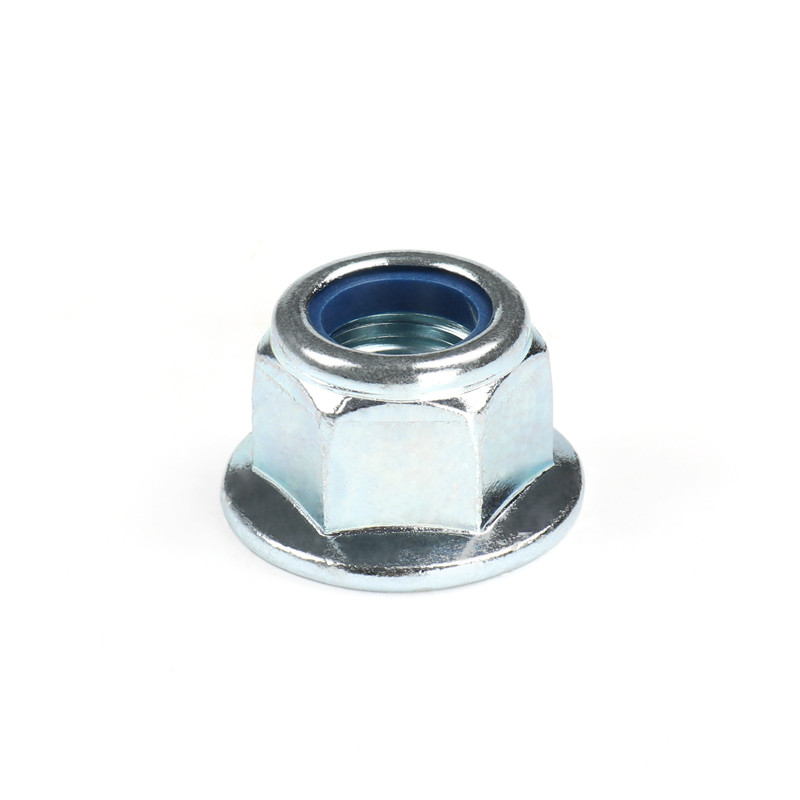

    High Strength Grad (10)

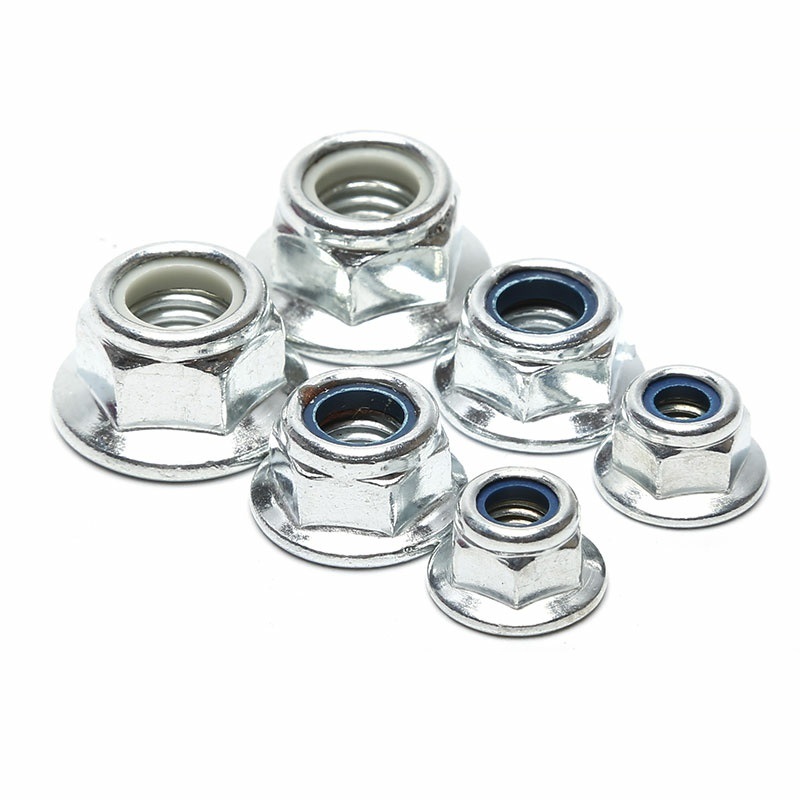

    HIGHST~1

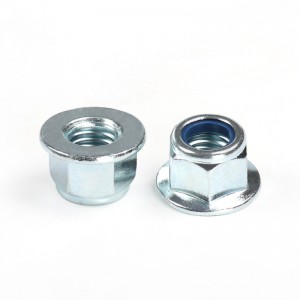

    High Strength Grad (7)

    Product Standards

    detail21

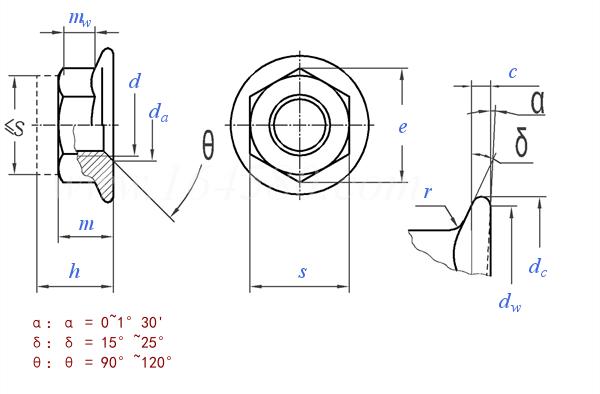

    Non-metallic insert locking hex flange nuts DIN 6926
    thread size M5 M6 M8 M10 M12 (M14) M16 M20
    d
    P pitch coarse teeth 0.8 1 1.25 1.5 1.75 2 2 2.5
    fine teeth 1 / / 1 1.25 1.5 1.5 1.5 1.5
    fine teeth 2 / / / -1 -1.25 / / /
    c minimum 1 1.1 1.2 1.5 1.8 2.1 2.4 3
    d a minimum 5 6 8 10 12 14 16 20
    maximum value 5.75 6.75 8.75 10.8 13 15.1 17.3 21.6
    dc maximum value 11.8 14.2 17.9 21.8 26 29.9 34.5 42.8
    dw minimum 9.8 12.2 15.8 19.6 23.8 27.6 31.9 39.9
    and minimum 8.79 11.05 14.38 16.64 20.03 23.36 26.75 32.95
    h maximum value 7.1 9.1 11.1 13.5 16.1 18.2 20.3 24.8
    minimum 6.74 8.74 10.67 13.07 15.67 17.68 19.46 23.96
    m minimum 4.7 5.7 7.6 9.6 11.6 13.3 15.3 18.9
    mw minimum 2.2 3.1 4.5 5.5 6.7 7.8 9 11.1
    s max = nominal 8 10 13 15 18 twenty one twenty four 30
    minimum 7.78 9.78 12.73 14.73 17.73 20.67 23.67 29.16
    r maximum value 0.3 0.36 0.48 0.6 0.72 0.88 0.96 1.2
    ①,Material: Steel, property class (material): 8, 10, 12 (≤M16) according to DIN ISO 898-2, DIN 267-23; insert material: nylon
    detail22

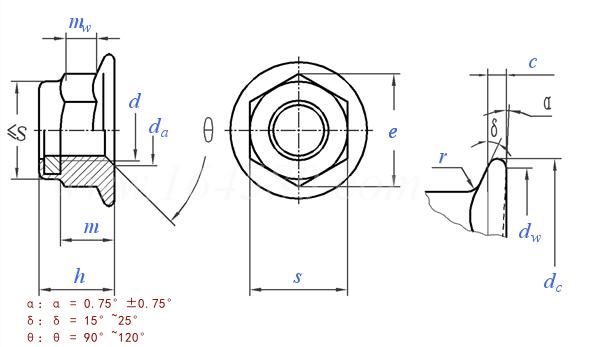

    Non-metallic insert locking hex flange nuts DIN EN 1663
    thread size M5 M6 M8 M10 M12 (M14) M16 M20
    d
    P pitch 0.8 1 1.25 1.5 1.75 2 2 2.5
    c minimum 1 1.1 1.2 1.5 1.8 2.1 2.4 3
    d a minimum 5 6 8 10 12 14 16 20
    maximum value 5.75 6.75 8.75 10.8 13 15.1 17.3 21.6
    dc maximum value 11.8 14.2 17.9 21.8 26 29.9 34.5 42.8
    dw minimum 9.8 12.2 15.8 19.6 23.8 27.6 31.9 39.9
    and minimum 8.79 11.05 14.38 17.77 20.03 23.36 26.75 32.95
    h maximum value 7.1 9.1 11.1 13.5 16.1 18.2 20.3 24.8
    minimum 6.52 8.52 10.4 12.8 15.4 16.9 19 22.7
    m minimum 4.7 5.7 7.6 9.6 11.6 13.3 15.3 18.7
    mw minimum 2.5 3.1 4.6 5.9 6.8 7.7 8.9 10.7
    s maximum value 8 10 13 16 18 21 24 30
    minimum 7.78 9.78 12.73 15.73 17.73 20.67 23.67 29.16
    r maximum value 0.3 0.36 0.48 0.6 0.72 0.88 0.96 1.2
    ①,Material:
    Steel, performance class 8: d≤M16,Type1; d>M16,Type2. Performance class 10: Type1. StandardprEN ISO 2320
