High Strength Grade 4.8 8.8 10.9 12.9 Hot Dip Galvanized HDG DIN603 Carriage Bolts


  • Moq:
    test
  • Price:
    test
  • Package:
    test
  • Export port:
    test
  • Delivery date:
    test
  • Payment method:
    test
  • Product Detail

    Product Tags

    Product Photos and Information

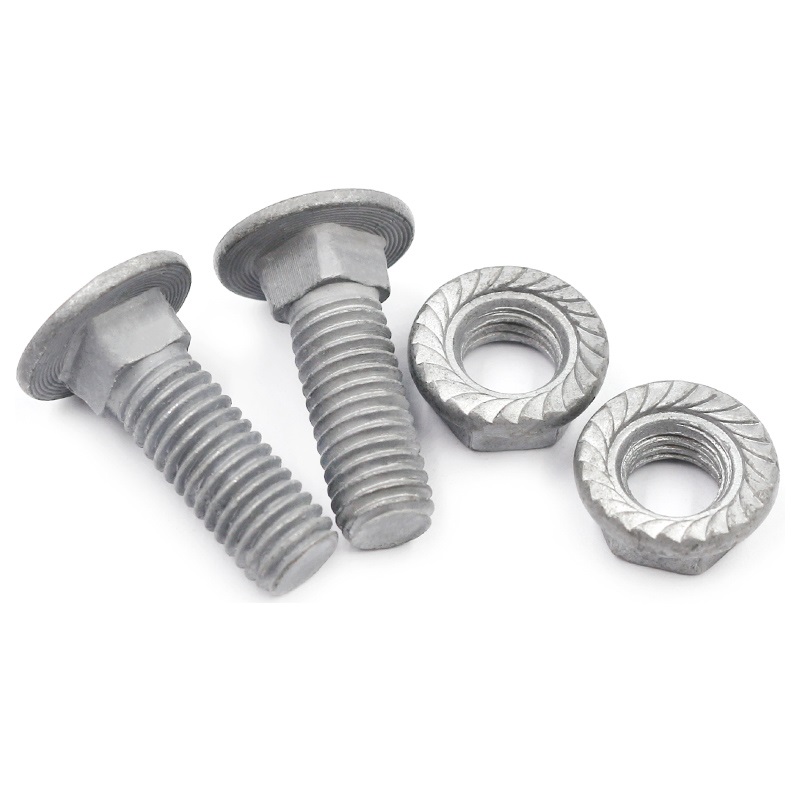

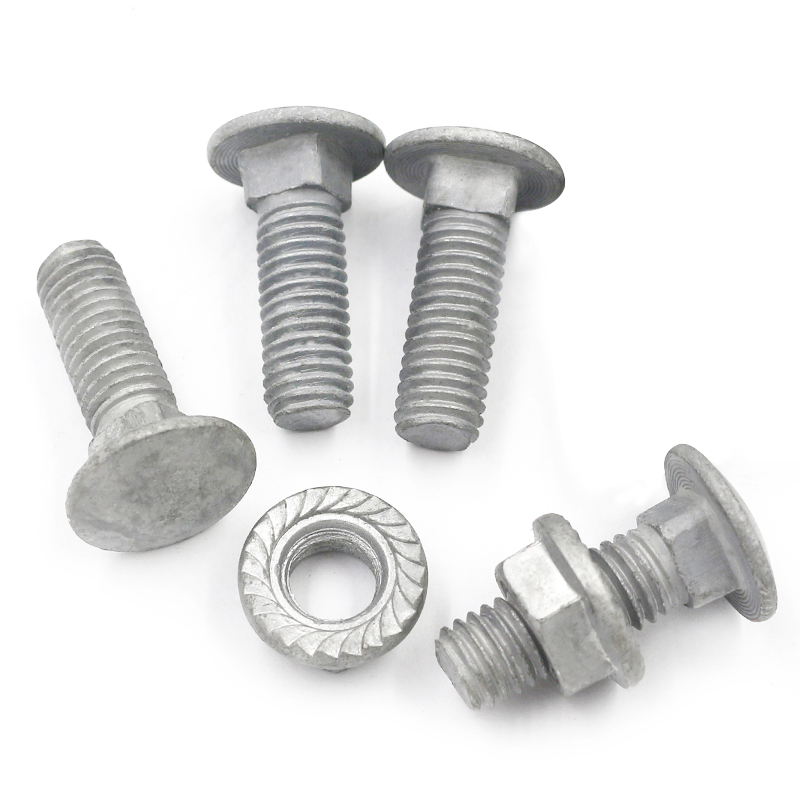

    High Strength Grade 4.8 8.8 10.9 12.9 Hot Dip Galvanized HDG DIN603 C (1)
    Name Carriage Bolts
    Standards DIN ISO ANC BSW JIS etc.
    Size M3-M50
    Length 15-500
    Materials Carbon Steel/Stainless Steel
    Strength level 4.8 8.8 10.9 12.9 A2-70 A4-70 A4-80
    Surface finish ZPHDGBLACKDacromet etc.
    Samples Available

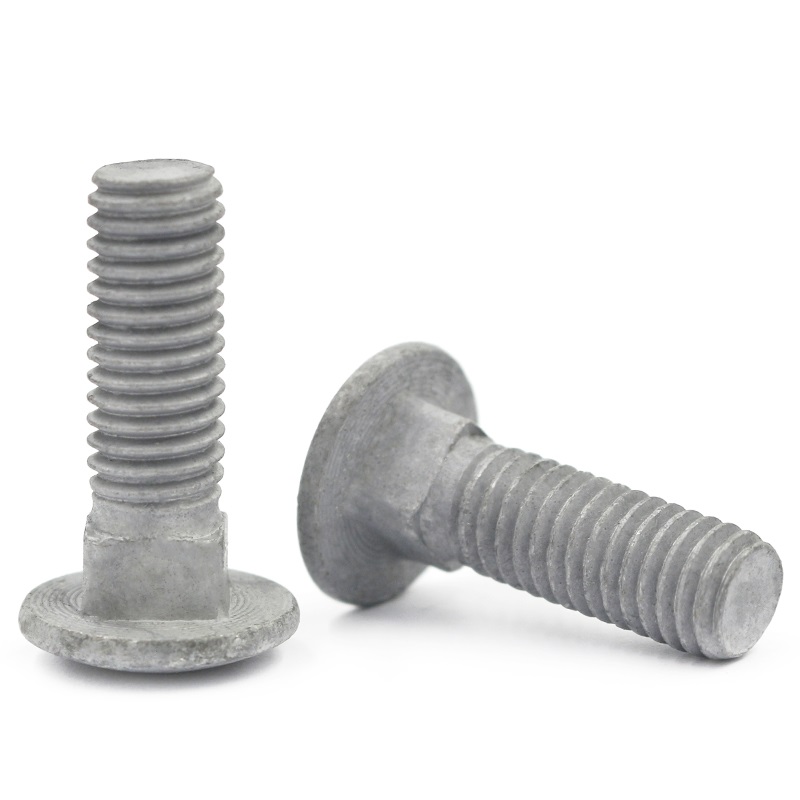

    High Strength Grade 4.8 8.8 10.9 12.9 Hot Dip Galvanized HDG DIN603 C ( (6)

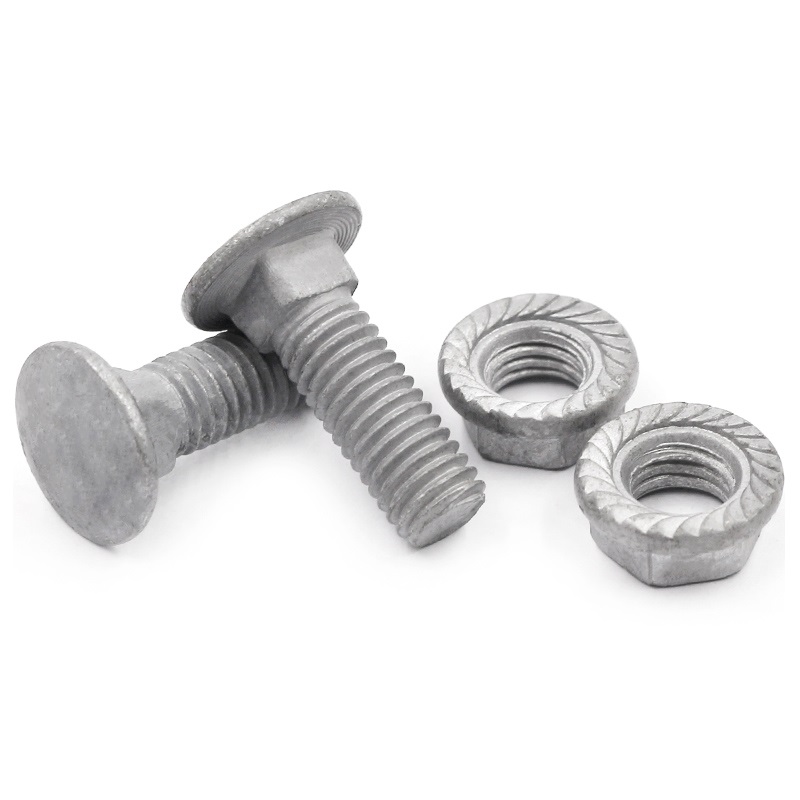

    High Strength Grade 4.8 8.8 10.9 12.9 Hot Dip Galvanized HDG DIN603 C (

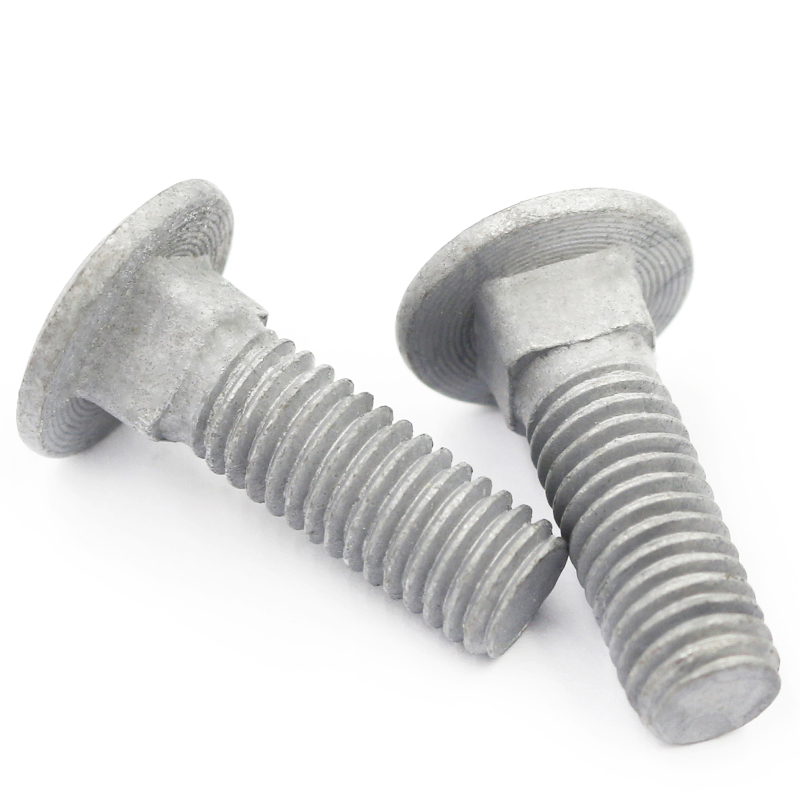

    High Strength Grade 4.8 8.8 10.9 12.9 Hot Dip Galvanized HDG DIN603 C ( (5)

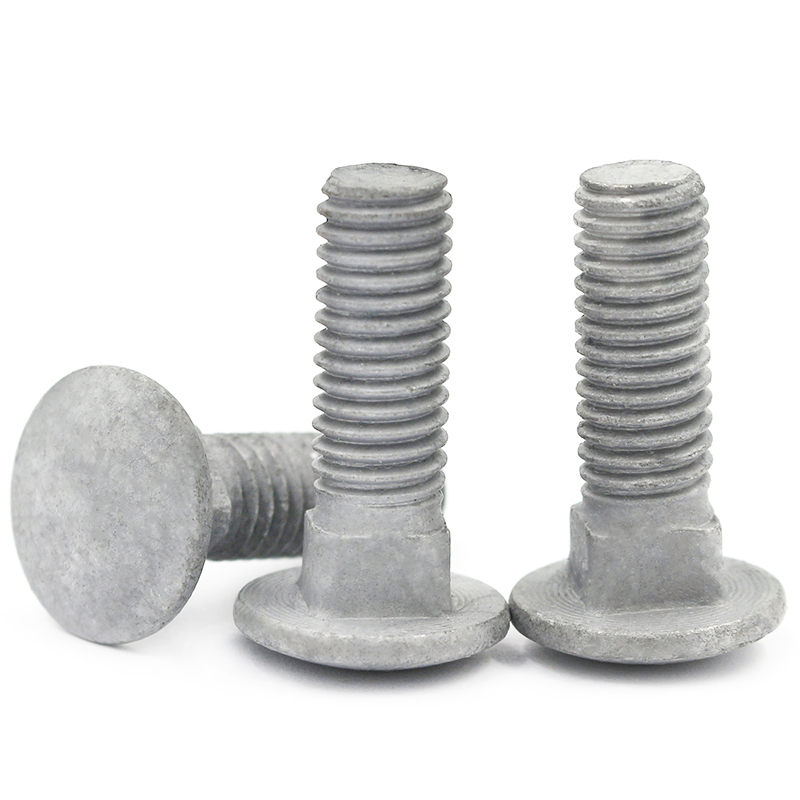

    High Strength Grade 4.8 8.8 10.9 12.9 Hot Dip Galvanized HDG DIN603 C ( (4)

    Product Standards

    detail5
    Large round head square neck bolts DIN 603
    Thread specification M5 M6 M8 M10 M12 M16 M20
    d
    P pitch 0.8 1 1.25 1.5 1.75 2 2.5
    b L≤125 16 18 twenty two 26 30 38 46
    125<L≤200 twenty two twenty four 28 32 36 44 52
    L>200 - - 41 45 49 57 65
    dk maximum value 13.55 16.55 20.65 24.65 30.65 38.8 46.8
    minimum 12.45 15.45 19.35 23.35 29.35 37.2 45.2
    ds maximum value 5 6 8 10 12 16 20
    minimum 4.52 5.52 7.42 9.42 11.3 15.3 19.16
    k 1 maximum value 4.1 4.6 5.6 6.6 8.75 12.9 15.9
    minimum 2.9 3.4 4.4 5.4 7.25 11.1 14.1
    k maximum value 3.3 3.88 4.88 5.38 6.95 8.95 11.05
    minimum 2.7 3.12 4.12 4.62 6.05 8.05 9.95
    r 1 10.7 12.6 16 19.2 24.1 29.3 33.9
    r 2 maximum value 0.5 0.5 0.5 0.5 1 1 1
    r 3 maximum value 0.75 0.9 1.2 1.5 1.8 2.4 3
    s maximum value 5.48 6.48 8.58 10.58 12.7 16.7 20.84
    minimum 4.52 5.52 7.42 9.42 11.3 15.3 19.16
    Thousand pieces of steel weight ≈kg - - - - - - -
    thread length b - - - - - - -
