High Strength Grade 4 8 10 12 Steel Black Oxide DIN934 Hex Nuts


  • Moq:
    test
  • Price:
    test
  • Package:
    test
  • Export port:
    test
  • Delivery date:
    test
  • Payment method:
    test
    • Download All Products List

    Product Detail

    Product Tags

    Product Photos and Information

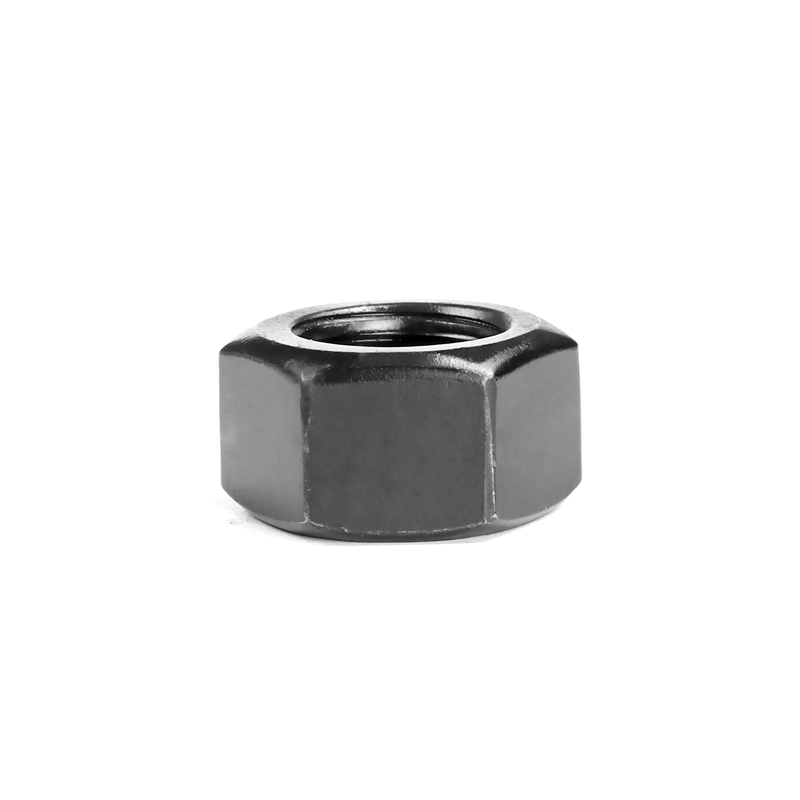

    High Strength Grade 4 8 10 12 Steel Black Oxide DIN934 Hex Nuts (2)
    Name Hex Nuts
    Standards DIN ISO ANC BSW JIS etc.
    Size M3-M50
    Length 1-32
    Materials Carbon Steel/Stainless Steel
    Strength level 4 5 8 10 12 A2-70 A4-70 A4-80 etc.
    Surface finish ZPHDGBLACKDacromet etc.
    Samples Available

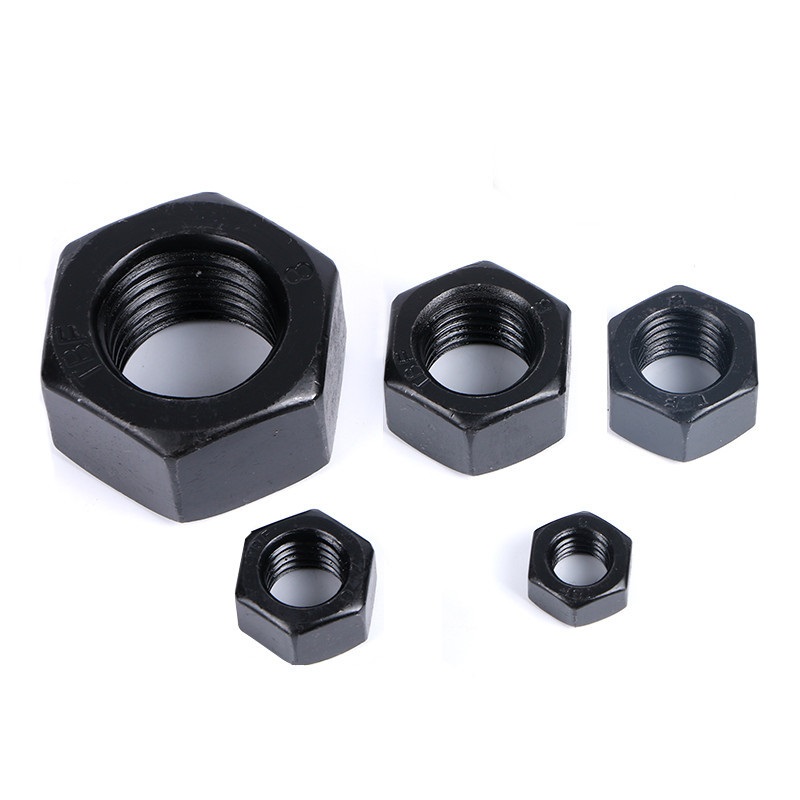

    High Strength Grade 4 8 10 12 Steel Black Oxide DIN934 Hex Nuts (8)

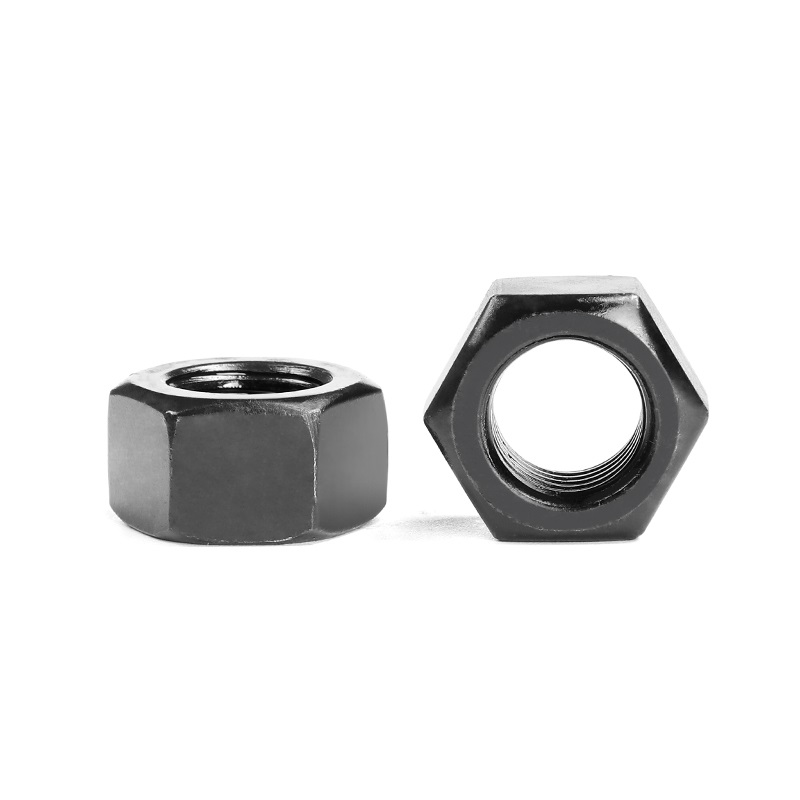

    High Strength Grade 4 8 10 12 Steel Black Oxide DIN934 Hex Nuts (4)

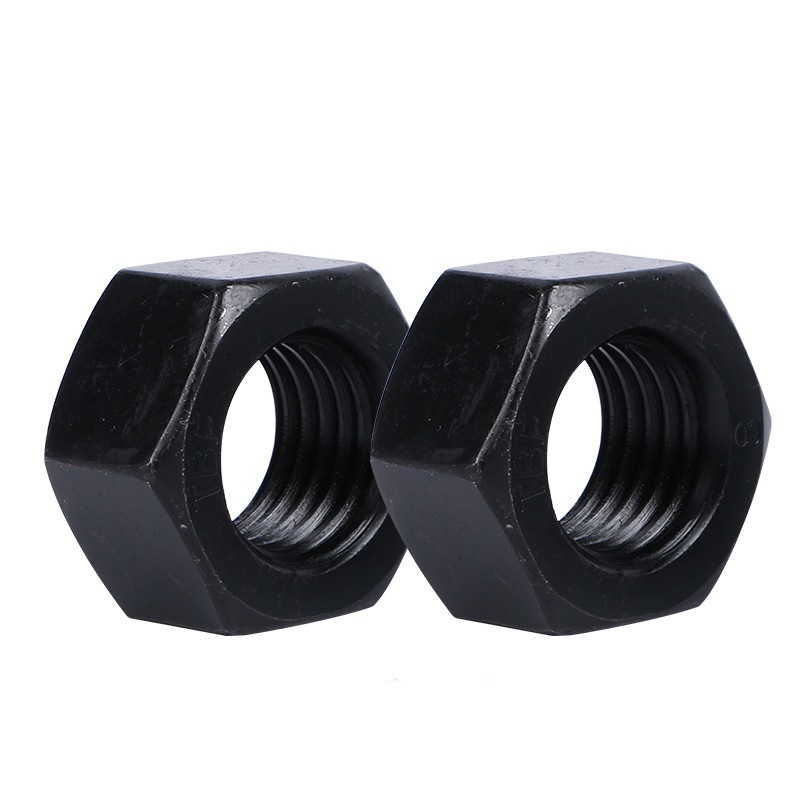

    High Strength Grade 4 8 10 12 Steel Black Oxide DIN934 Hex Nuts (7)
    High Strength Grade 4 8 10 12 Steel Black Oxide DIN934 Hex Nuts (5)

    Product Standards

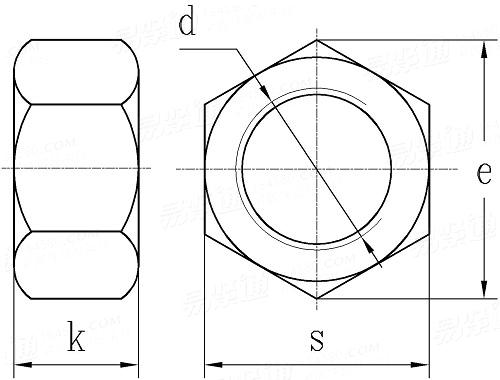

    detail15
    Hexagon Nuts with Metric Threads Class A and Class B DIN 934
    Thread specification M1 M1.2 M1.4 M1.6 M1.7 M2 M2.3 M2.5 M2.6 M3 M3.5 M4 M5 M6 M7 M8
    d
    P coarse teeth 0.25 0.25 0.3 0.35 0.35 0.4 0.45 0.45 0.45 0.5 0.6 0.7 0.8 1 1 1.25
    fine teeth / / / / / / / / / / / / / / / 1
    very fine teeth / / / / / / / / / / / / / / / /
    k max = nominal 0.8 1 1.2 1.3 1.4 1.6 1.8 2 2 2.4 2.8 3.2 4 5 5.5 6.5
    minimum 0.55 0.75 0.95 1.05 1.15 1.35 1.55 1.75 1.75 2.15 2.55 2.9 3.7 4.7 5.2 6.14
    s max = nominal 2.5 3 3 3.2 3.5 4 4.5 5 5 5.5 6 7 8 10 11 13
    minimum 2.4 2.9 2.9 3.08 3.38 3.88 4.32 4.82 4.82 5.32 5.82 6.78 7.78 9.78 10.73 12.73
    e ① minimum 2.71 3.28 3.28 3.48 3.82 4.38 4.88 5.45 5.45 6.01 6.58 7.66 8.79 11.05 12.12 14.38
    * / / / / / / / / / / / / / / / /
    Thousand pieces (steel)≈kg 0.03 0.054 0.063 0.076 0.1 0.142 0.2 0.28 0.72 0.384 0.514 0.81 1.23 2.5 3.12 5.2
    Thread specification M10 M12 M14 M16 M18 M20 M22 M24 M27 M30 M33 M36 M39 M42 M45 M48
    d
    P coarse teeth 1.5 1.75 2 2 2.5 2.5 2.5 3 3 3.5 3.5 4 4 4.5 4.5 5
    fine teeth 1.25 1.25 1.5 1.5 1.5 1.5 1.5 2 2 2 2 3 3 3 3 3
    very fine teeth 1 1.5 / / 2 2 2 / / / / / / / / /
    k max = nominal 8 10 11 13 15 16 18 19 twenty two twenty four 26 29 31 34 36 38
    minimum 7.64 9.64 10.3 12.3 14.3 14.9 16.9 17.7 20.7 22.7 24.7 27.4 29.4 32.4 34.4 36.4
    s max = nominal 17 19 twenty two twenty four 27 30 32 36 41 46 50 55 60 65 70 75
    minimum 16.73 18.67 21.67 23.67 26.16 29.16 31 35 40 45 49 53.8 58.8 63.8 68.1 73.1
    e ① minimum 18.9 21.1 24.49 26.75 29.56 32.95 35.03 39.55 45.2 50.85 55.37 60.79 66.44 72.09 76.95 82.6
    * / / / / / / / / / / / / / / / /
    Thousand pieces (steel)≈kg 11.6 17.3 25 33.3 49.4 64.4 79 110 165 223 288 393 502 652 800 977
    Thread specification M52 M56 M60 M64 M68 M72 M76 M80 M85 M90 M100 M110 M125 M140 M160
    d
    P coarse teeth 5 5.5 5.5 6 6 / / / / / / / / / /
    fine teeth 3 4 4 4 4 6 6 6 6 6 6 6 6 6 6
    very fine teeth / / / / / 4 4 4 4 4 4 4 4 / /
    k max = nominal 42 45 48 51 54 58 61 64 68 72 80 88 100 112 128
    minimum 40.4 43.4 46.4 49.1 52.1 56.1 59.1 62.1 66.1 70.1 78.1 85.8 97.8 109.8 125.5
    s max = nominal 80 85 90 95 100 105 110 115 120 130 145 155 180 200 230
    minimum 78.1 82.8 87.8 92.8 97.8 102.8 107.8 112.8 117.8 127.5 142.5 152.5 177.5 195.4 225.4
    e ① minimum 88.25 93.56 99.21 104.86 110.51 116.16 121.81 127.46 133.11 144.08 161.02 172.32 200.57 220.8 254.7
    * / / / / / / / / / / / 170 196 216 248
    Thousand pieces (steel)≈kg 1220 1420 1690 1980 2300 2670 3040 3440 3930 4930 6820 8200 13000 17500 26500
    ①,e In the case of size M110 or larger, the hexagonal edge can be rounded.
