Product Detail

Product Tags

Product Photos and Information

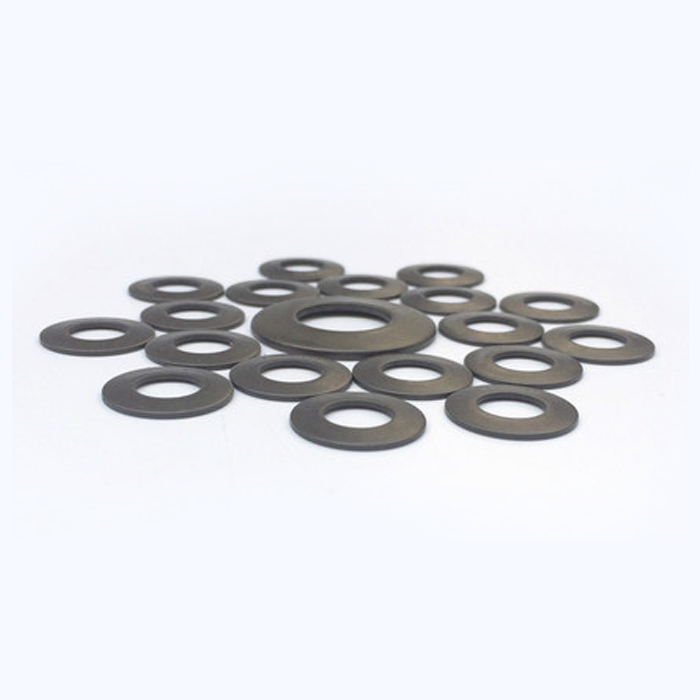

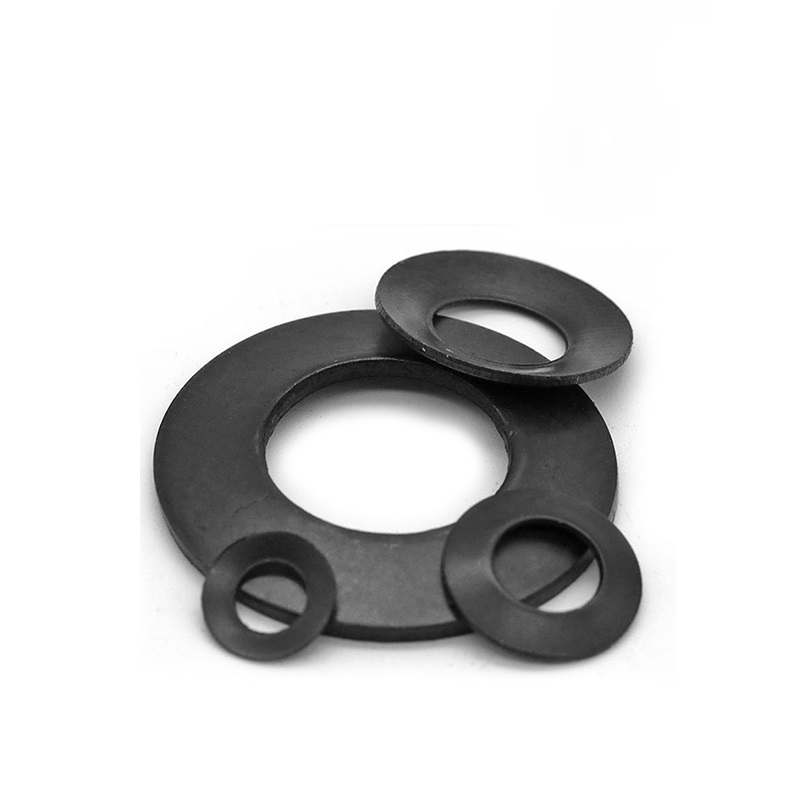

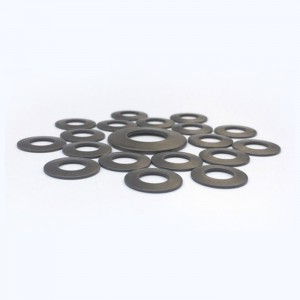

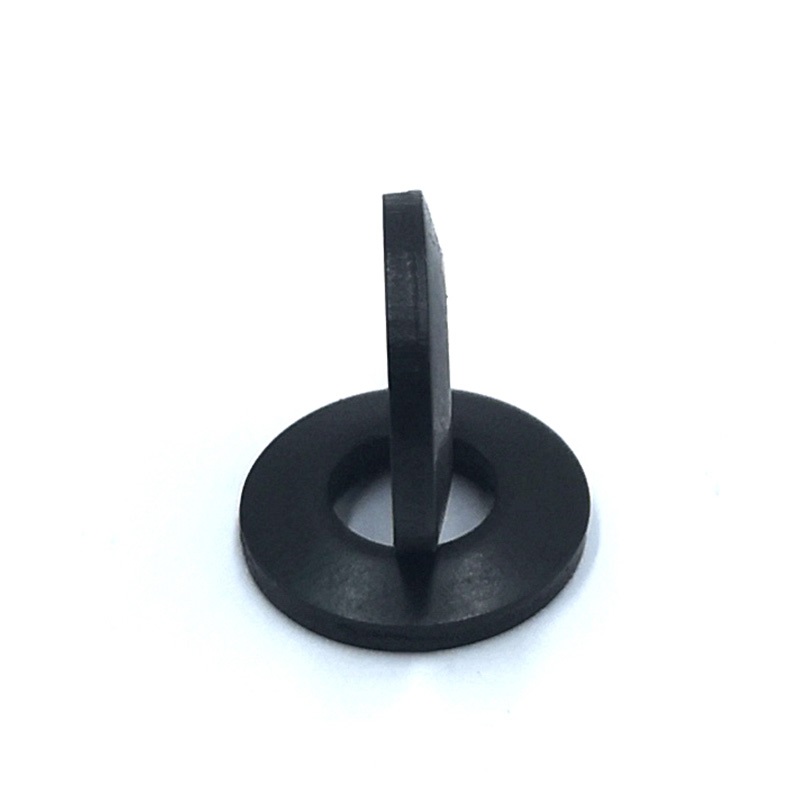

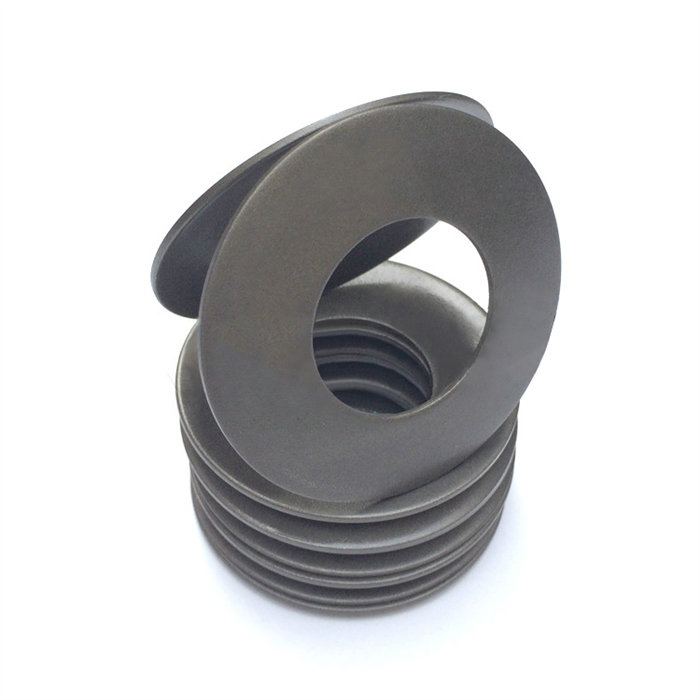

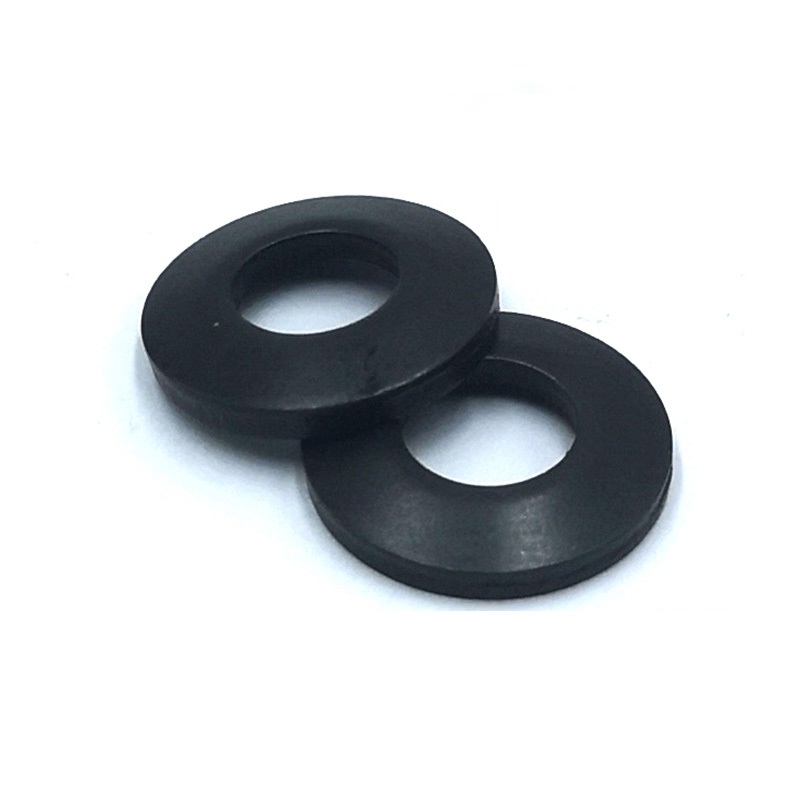

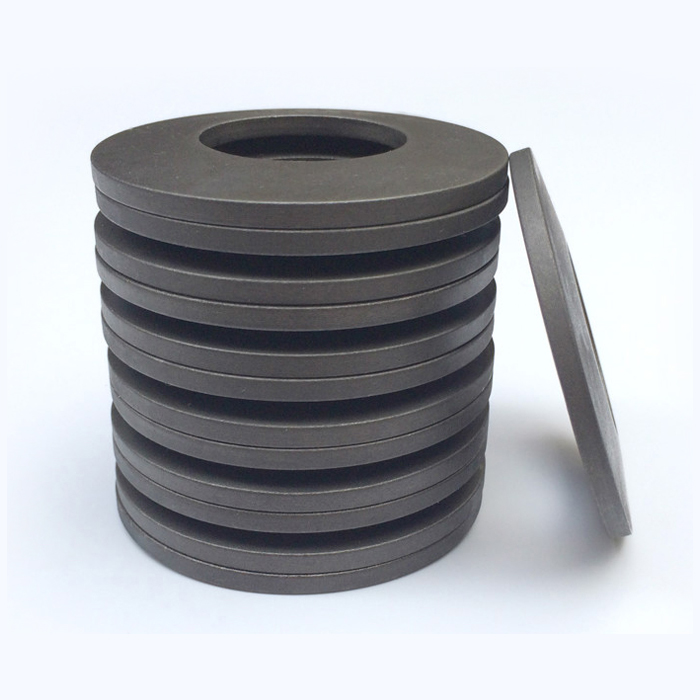

Black Oxide DIN2093 Disc Spring Belleville Washers

Name	Spring Washers	Materials	Carbon Steel/Stainless Steel
Standards	DIN ISO ANC BSW JIS etc.	Strength level	4.8 8.8 etc.
Size	M4-M130	Surface finish	ZPBLACKHDG etc.
Length	/	Samples	Available

Product Standards

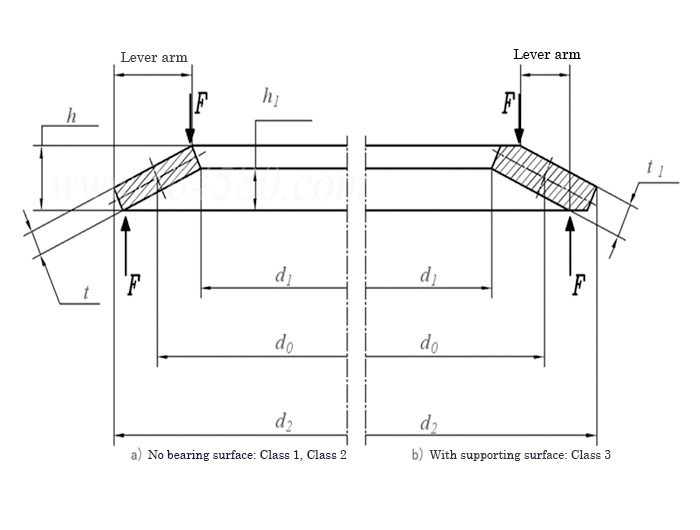

Disc Spring DIN 2093
Specification		8	10	12.5	14	16	18	20	22.5	25	28	31.5	35.5	40	45	50
d 1	Min = Nominal (H12)	4.2	5.2	6.2	7.2	8.2	9.2	10.2	11.2	12.2	14.2	16.3	18.3	20.4	22.4	25.4
d 1	maximum value	4.32	5.32	6.35	7.35	8.35	9.35	10.38	11.38	12.38	14.38	16.48	18.51	20.61	22.61	25.61
d 2	max = nominal (h12)	8	10	12.5	14	16	18	20	22.5	25	28	31.5	35.5	40	45	50
d 2	minimum	7.85	9.85	12.32	13.82	15.82	17.82	19.79	22.29	24.79	27.79	31.25	35.25	39.75	44.75	49.75
t		0.4	0.5	0.7	0.8	0.9	1	1.1	1.25	1.5	1.5	1.75	2	2.25	2.5	3
t 1		-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
h 1		0.2	0.25	0.3	0.3	0.35	0.4	0.45	0.5	0.55	0.65	0.7	0.8	0.9	1	1.1
h		0.6	0.75	1	1.1	1.25	1.4	1.55	1.75	2.05	2.15	2.45	2.8	3.15	3.5	4.1
Gasket Type		1	1	1	1	1	1	1	2	2	2	2	2	2	2	2
规范		56	63	71	80	90	100	112	125	140	160	180	200	225	250
c 五	Min = Nominal (H12)	28.5	31	36	41	46	51	57	64	72	82	92	102	112	127
c 五	最大值	28.71	31.25	36.25	41.25	46.25	51.3	57.3	64.3	72.3	82.35	92.35	102.35	112.35	127.4
c 五	max = nominal (h12)	56	63	71	80	90	100	112	125	140	160	180	200	225	250
c 五	最低	55.7	62.7	70.7	79.7	89.65	99.65	111.65	124.6	139.6	159.6	179.6	199.54	224.54	249.54
t		3	3.5	4	5	5	6	6	8	8	10	10	12	12	14
t 1		-	-	-	-	-	-	-	7.5	7.5	9.4	9.4	11.25	11.25	13.1
h 1		1.3	1.4	1.6	1.7	2	2.2	2.5	2.6	3.2	3.5	4	4.2	5	5.6
h		4.3	4.9	5.6	6.7	7	8.2	8.5	10.6	11.2	13.5	14	16.2	17	19.6
Gasket Type		2	2	2	2	2	2	2	3	3	3	3	3	3	3
