304 stainless steel gasket thickened flat gasket thicken galvanization round screw


  • Moq:
    1 ton
  • Price:
    Please contact us
  • Package:
    Bagged/Boxed etc.
  • Export port:
    Tianjin/Qingdao/Shanghai etc.
  • Delivery date:
    15~30 days
  • Payment method:
    T/T T/C
  • Product Detail

    Product Tags

    Product Photos and Information

    Blue White Zinc Plated Steel DIN125 Flat Washers

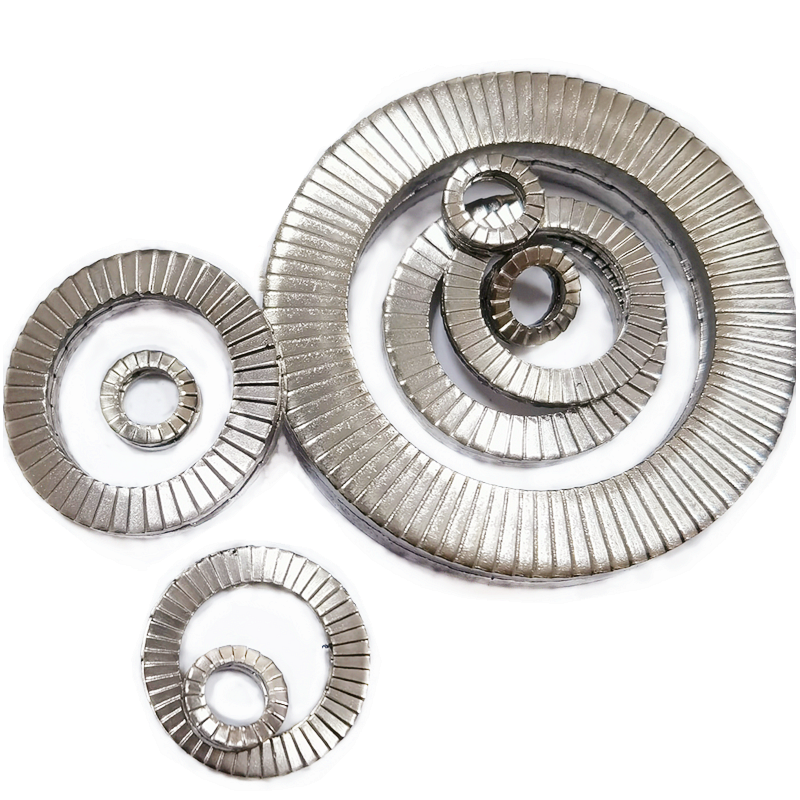

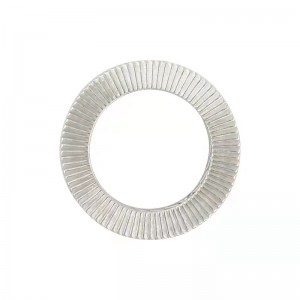

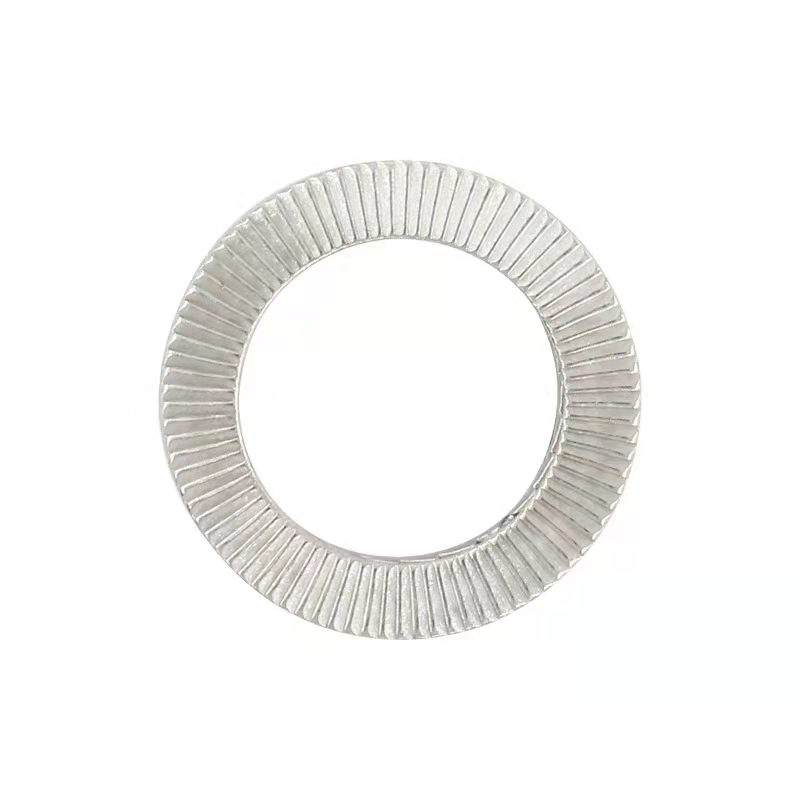

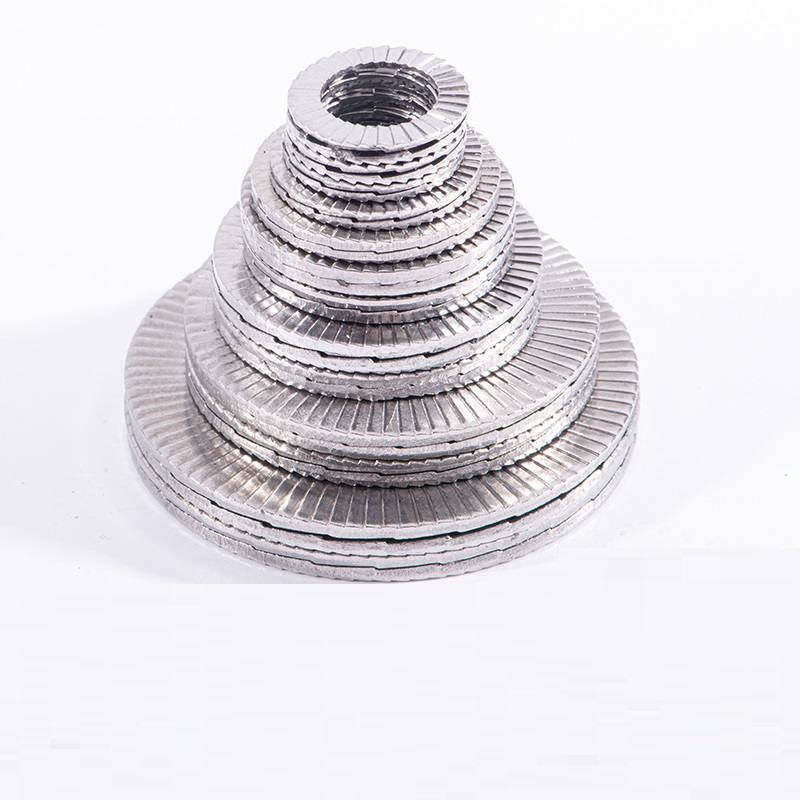

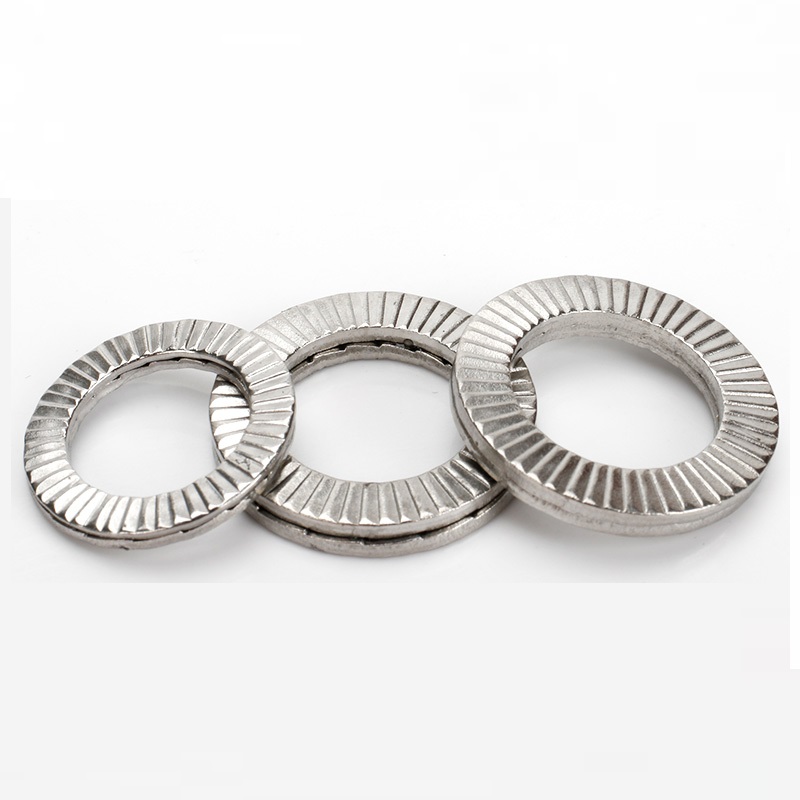

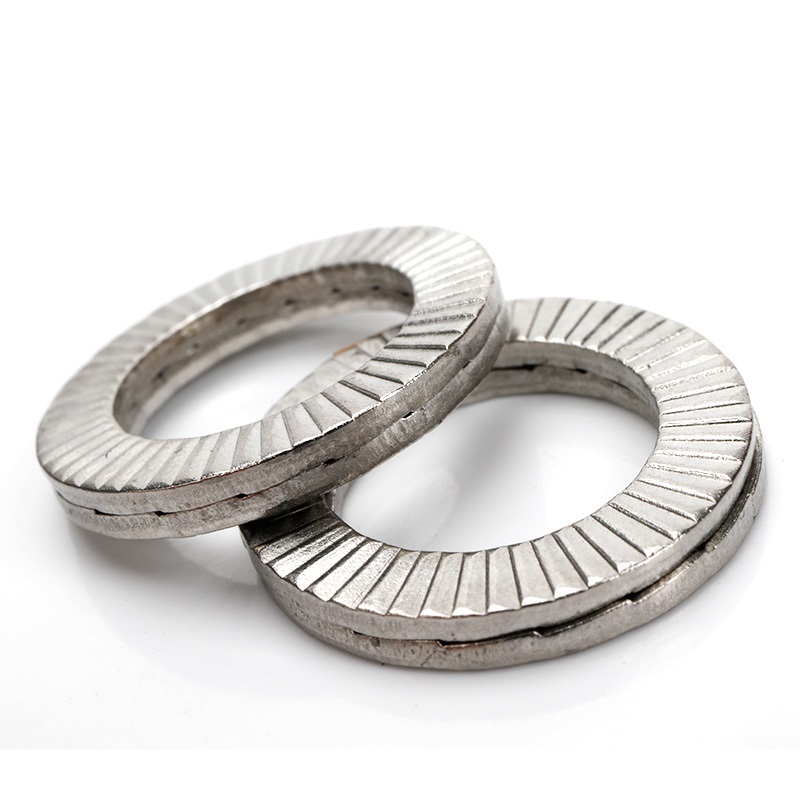

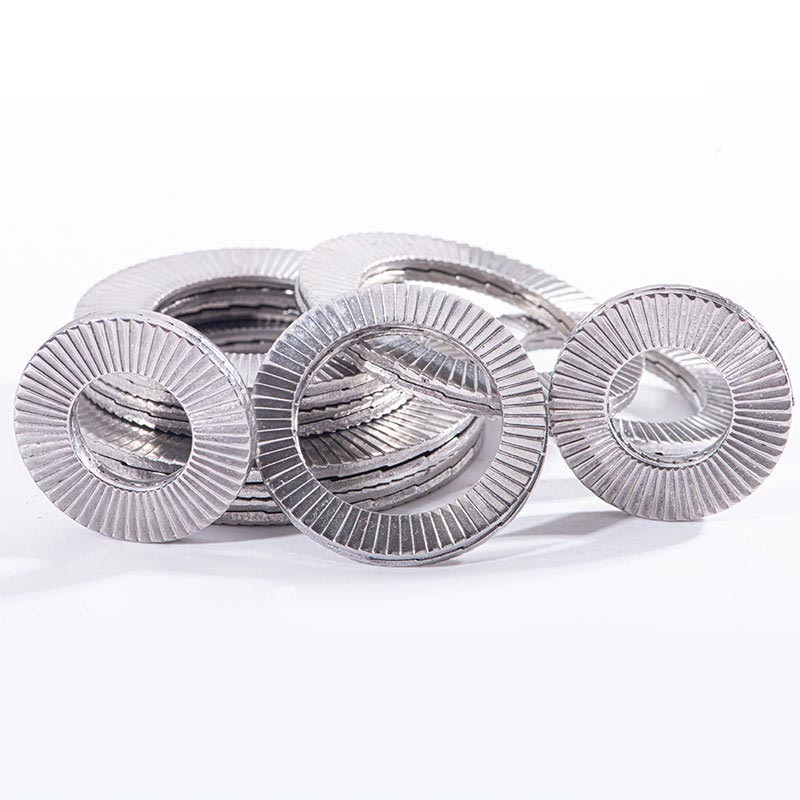

    Name Double Fold Lock Washers Materials Carbon Steel/Stainless Steel
    Standards DIN ISO ANC BSW JIS etc. Strength level 65MN 4.8 8.8 10.9 etc.
    Size M3-M18 Surface finish ZPBLACK etc.
    Length 1-3.5 Samples Available
    Blue White Zinc Plated Steel DIN125 Flat Washers
    Blue White Zinc Plated Steel DIN125 Flat Washers
    Blue White Zinc Plated Steel DIN125 Flat Washers
    Blue White Zinc Plated Steel DIN125 Flat Washers

    Product Standards

    1678861316856

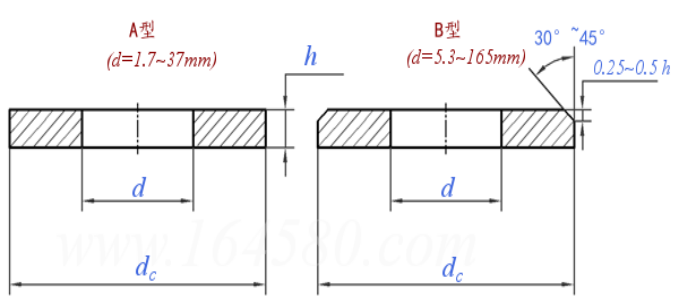

    Flat Washers  DIN 125
    Specification Φ1.7 Φ1.8 Φ2.2 Φ2.5 Φ2.7 Φ2.8 Φ3.2 Φ3.7 Φ4.3 Φ5.3 Φ6.4 Φ7.4 Φ8.4 Φ10.5 F13 F15
    M Corresponding bolt specifications M1.6 M1.7 M2 M2.3 M2.5 M2.6 M3 M3.5 M4 M5 M6 M7 M8 M10 M12 M14
    d min=nominal 1.7 1.8 2.2 2.5 2.7 2.8 3.2 3.7 4.3 5.3 6.4 7.4 8.4 10.5 13 15
    maximum value 1.84 1.94 2.34 2.64 2.84 2.94 3.38 3.88 4.48 5.48 6.62 7.62 8.62 10.77 13.27 15.27
    dc max = nominal 4 4.5 5 6 6 7 7 8 9 10 12 14 16 20 twenty four 28
    minimum 3.7 4.2 4.7 5.7 5.7 6.64 6.64 7.64 8.64 9.64 11.57 13.57 15.57 19.48 23.48 27.48
    h Nominal 0.3 0.3 0.3 0.5 0.5 0.5 0.5 0.5 0.8 1 1.6 1.6 1.6 2 2.5 2.5
    maximum value 0.35 0.35 0.35 0.55 0.55 0.55 0.55 0.55 0.9 1.1 1.8 1.8 1.8 2.2 2.7 2.7
    minimum 0.25 0.25 0.25 0.45 0.45 0.45 0.45 0.45 0.7 0.9 1.4 1.4 1.4 1.8 2.3 2.3
    Thousand pieces (steel)≈kg 0.024 0.031 0.037 0.092 0.088 0.127 0.119 0.155 0.308 0.443 1.02 1.39 1.83 3.57 6.27 8.62
    Specification F17 F19 F21 F23 Φ25 F27 F28 F29 F31 F33 F34 F36 F37 F39 Φ40 F41
    M Corresponding bolt specifications M16 M18 M20 M22 M24 M26 M27 M28 M30 M32 M33 M35 M36 M38 M39 M40
    d min=nominal 17 19 twenty one twenty three 25 27 28 29 31 33 34 36 37 39 40 41
    maximum value 17.27 19.33 21.33 23.33 25.33 27.33 28.33 29.33 31.39 33.62 34.62 36.62 37.62 39.62 40.62 41.62
    dc max = nominal 30 34 37 39 44 50 50 50 56 60 60 66 66 72 72 72
    minimum 29.48 33.38 36.38 38.38 43.38 49.38 49.38 49.38 55.26 58.8 58.8 64.8 64.8 70.8 70.8 70.8
    h Nominal 3 3 3 3 4 4 4 4 4 5 5 5 5 6 6 6
    maximum value 3.3 3.3 3.3 3.3 4.3 4.3 4.3 4.3 4.3 5.6 5.6 5.6 5.6 6.6 6.6 6.6
    minimum 2.7 2.7 2.7 2.7 3.7 3.7 3.7 3.7 3.7 4.4 4.4 4.4 4.4 5.4 5.4 5.4
    Thousand pieces (steel)≈kg 11.3 14.7 17.2 18.3 32.3 43.7 42.3 40.9 53.6 77.4 75.3 94.3 92.1 136 133 130
    Specification F43 F46 Φ50 F52 F54 F57 F58 Φ60 F62 F66 Φ70 F74 F78 F82 F87 F93
    M Corresponding bolt specifications M42 M45 M48 M50 M52 M55 M56 M58 M60 M64 M68 M72 M76 M80 M85 M90
    d min=nominal 43 46 50 52 54 57 58 60 62 66 70 74 78 82 87 93
    maximum value 43.62 46.62 50.62 52.74 54.74 57.74 58.74 60.74 62.74 66.74 70.74 74.74 78.74 82.87 87.87 93.87
    dc max = nominal 78 85 92 92 98 105 105 110 110 115 120 125 135 140 145 160
    minimum 76.8 83.6 90.6 90.6 96.6 103.6 103.6 108.6 108.6 113.6 118.6 123.4 133.4 138.4 143.4 158.4
    h Nominal 7 7 8 8 8 9 9 9 9 9 10 10 10 12 12 12
    maximum value 8 8 9 9 9 10 10 10 10 10 11 11 11 13.2 13.2 13.2
    minimum 6 6 7 7 7 8 8 8 8 8 9 9 9 10.8 10.8 10.8
    Thousand pieces (steel)≈kg 183 220 294 284 330 431 425 472 458 492 586 626 749 953 996 1250
    Specification F98 F104 F109 F114 F119 F124 F129 F134 F139 F144 F149 Φ155 Φ165
    M Corresponding bolt specifications M95 M100 M105 M110 M115 M120 M125 M130 M135 M140 M145 M150 M160
    d min=nominal 98 104 109 114 119 124 129 134 139 144 149 155 165
    maximum value 98.87 104.87 109.87 114.87 119.87 125 130 135 140 145 150 156 166
    直流 最大值 = 标称值 165 175 180 185 200 210 220 220 230 240 250 250 250
    最低 163.4 173.4 178.4 183.15 198.15* 208.15 218.15 218.15 228.15 238.15 248.15 248.15 248.15
    h 名义 12 14 14 14 14 16 16 16 16 18 18 18 18
    最大值 13.2 15.2 15.2 15.2 15.2 17.2 17.2 17.2 17.2 19.2 19.2 19.2 19.2
    最低 10.8 12.8 12.8 12.8 12.8 14.8 14.8 14.8 14.8 16.8 16.8 16.8 16.8
    千件(钢)≈公斤 1300 1710 1770 1830 2230 2830 3130 3000 3310 4090 4470 4270 3910
